Product Information
Features, Description, Q&A, Specs & Installation
Features
- A1000 Fuel System Upgrade
- Ideal for High Performance Vehicles
- A1000 Fuel Pump - Supports up to 1300 Horsepower
- CNC-machined, Billet Aluminum Fuel Rail Kit
- EFI Regulator, 100-Micron Pre Filter, and 10-Micron Post Filter Included
- Fits 1996-1998 4.6L Ford Mustang Cobra Models
Description
High Performance Upgrade. If you're running forced induction or nitrous setup on your DOHC 4.6L EFI V8 Mustang, upgrading the stock fuel system is a necessity to keep your engine from starving for fuel. Your weak stock fuel pump just isn't capable of keeping up with a modified engine's fuel demands, so upgrade to an Aeromotive A1000 Fuel System to maximize the power of your mods.
Fuel System Upgrade. This Aeromotive A1000 Fuel System features an A1000 Fuel Pump, Fuel Rails, an EFI Bypass Regulator, 10-Micron Post Pump Filter, and 100-Micron Pre Pump Filter. A Fuel Pump Wiring Kit as well as enough AN-08 Fuel Line with Hose-Ends are included for a complete and total installation.
Aeromotive A1000 Fuel Pump. Producing a very generous 105 gallon per hour flow rate (90 psi maximum), the Aeromotive A1000 Fuel Pump can support up to 1300 horsepower on naturally aspirated engines and up to 1000 horsepower on forced air inducted setups. The Aeromotive A1000 fuel pump features an ORB-10 inlet and outlet port so you can plumb a true return-style system into your Mustang to support the big power you're making.
Fuel Rail Kit. Aeromotive High Flow Aluminum Fuel Rails replace those skinny stock fuel rails to reliably flow more fuel to your high performance engine. These Aeromotive fuel rails have a 5/8-inch inner diameter through bore, providing better flow which is capable of supporting up to 3,000 horsepower in racing applications. CNC machined to precise tolerances from lightweight billet aluminum each fuel rail is completed in a red anodized finish for corrosion resistance and features ORB-08 ports.
EFI Bypass Regulator. Aeromotive designed their A1000 Injected Return Style Regulator to be adjustable from 40 to 75 PSI, with just a twist of a screw, making it ideal for a wide range of applications. CNC machined to precise tolerances from billet aluminum, this Aeromotive Adjustable Fuel Pressure Regulator is completed in a red anodized finish for corrosion resistance and features a 1/8-inch NPT gauge port.
Application. This Aeromotive A1000 Fuel System is designed to fit 1996-1998 Ford SVT Cobra Mustang models equipped with the DOHC 4.6L V8 engine.
Fuel System Upgrade. This Aeromotive A1000 Fuel System features an A1000 Fuel Pump, Fuel Rails, an EFI Bypass Regulator, 10-Micron Post Pump Filter, and 100-Micron Pre Pump Filter. A Fuel Pump Wiring Kit as well as enough AN-08 Fuel Line with Hose-Ends are included for a complete and total installation.
Aeromotive A1000 Fuel Pump. Producing a very generous 105 gallon per hour flow rate (90 psi maximum), the Aeromotive A1000 Fuel Pump can support up to 1300 horsepower on naturally aspirated engines and up to 1000 horsepower on forced air inducted setups. The Aeromotive A1000 fuel pump features an ORB-10 inlet and outlet port so you can plumb a true return-style system into your Mustang to support the big power you're making.
Fuel Rail Kit. Aeromotive High Flow Aluminum Fuel Rails replace those skinny stock fuel rails to reliably flow more fuel to your high performance engine. These Aeromotive fuel rails have a 5/8-inch inner diameter through bore, providing better flow which is capable of supporting up to 3,000 horsepower in racing applications. CNC machined to precise tolerances from lightweight billet aluminum each fuel rail is completed in a red anodized finish for corrosion resistance and features ORB-08 ports.
EFI Bypass Regulator. Aeromotive designed their A1000 Injected Return Style Regulator to be adjustable from 40 to 75 PSI, with just a twist of a screw, making it ideal for a wide range of applications. CNC machined to precise tolerances from billet aluminum, this Aeromotive Adjustable Fuel Pressure Regulator is completed in a red anodized finish for corrosion resistance and features a 1/8-inch NPT gauge port.
Application. This Aeromotive A1000 Fuel System is designed to fit 1996-1998 Ford SVT Cobra Mustang models equipped with the DOHC 4.6L V8 engine.
Fitment:
DetailsAeromotive 17143
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

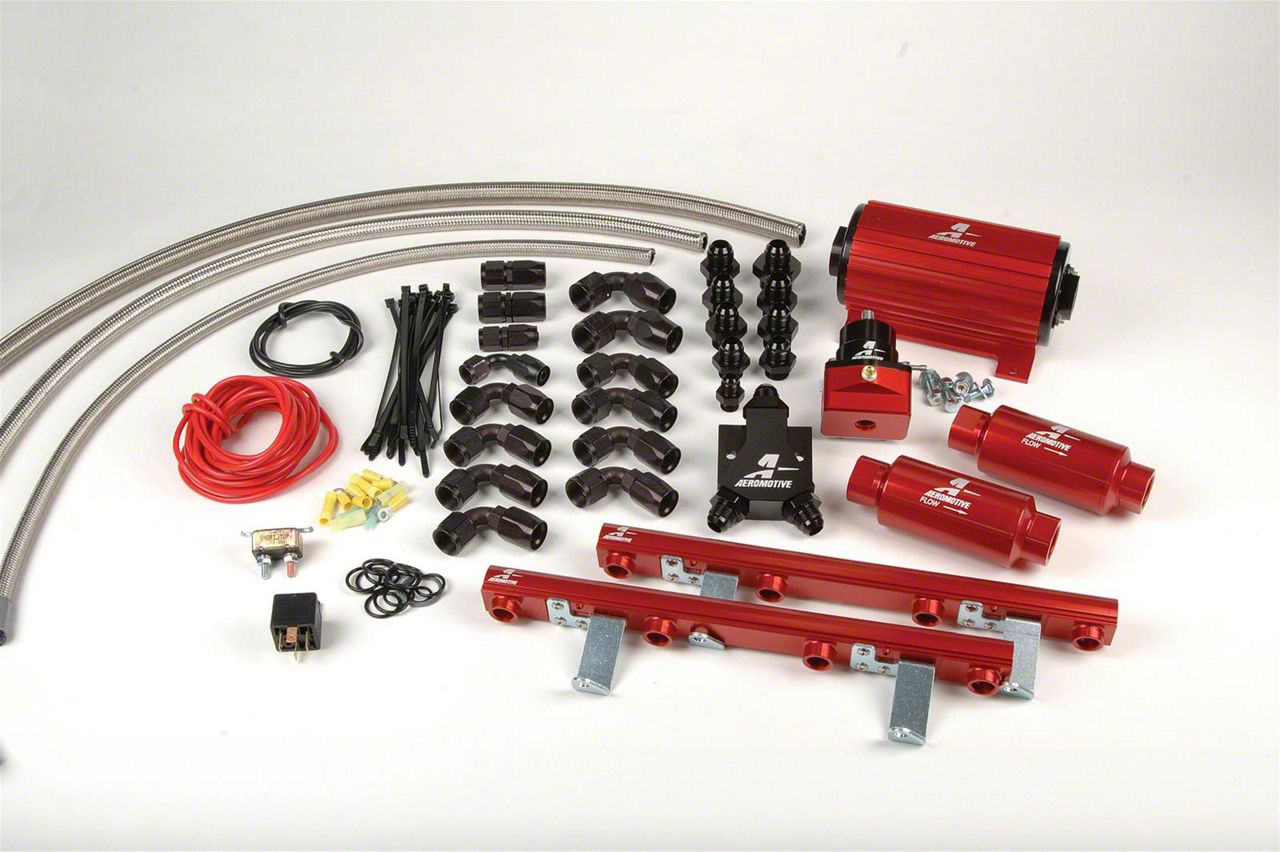

What's in the Box
- (1) fuel pump wiring kit
- (1) 3-foot length of 10 ga. Black wire
- (1) 25-foot length of 10 ga. Red wire
- (1) 30 amp circuit breaker
- (1) 30 amp automotive relay
- (2) blue female blade connector
- (2) yellow female blade connector
- (5) yellow #10 stud ring connector
- (1) yellow 3/8-inch stud ring connector
- (6) tie-wraps
- 4 feet AN-10 stainless steel braided line
- 16 feet AN-06 stainless steel braided line
- 26 feet AN-08 stainless steel braided line
- (2) AN-10 90-degree hose end
- (2) AN-08 straight hose end
- (6) AN-08 90-degree hose end
- (2) AN-08 Male 90-degree hose end
- (1) AN-06 straight hose end
- (1) AN-06 90-degree hose end
- (1) p/n 11101 Pump (17143 Kit only)
- (1) p/n 11104 Pump (17144 Kit only)
- (1) p/n 12304 Filter 100 Micron SS
- (1) p/n 12301 Filter 10 Micron Paper
- (1) p/n 13101 Fuel Pressure Regulator
- (1) p/n 14104 Ford 4.6L DOHC Fuel Rails
- (1) p/n 15675 Y-Block
- (4) ¼-inch flat washers
- (4) ¼-20 nyloc nuts
- (4) ¼-20 x 1-inch carriage bolts
- (12) tie-wraps
- (1) AN-06 o-ring
- (4) AN-08 o-ring
- (8) AN-10 o-ring (17143 kit only)
- (7) AN-10 o-ring (17144 kit only)
- (1) AN-12 o-ring (17144 kit only)
- (1) p/n 15606 AN-06 cutoff union
- (2) p/n 15607 AN-08 cutoff union
- (3) p/n 15608 AN-10 cutoff union (17143 kit only)
- (2) p/n 15608 AN-10 cutoff union (17144 kit only)
- (3) p/n 15610 AN-10 cutoff to AN-08 union
- (1) p/n 15613 AN-12 cutoff to AN-10 union (17144 kit only)
