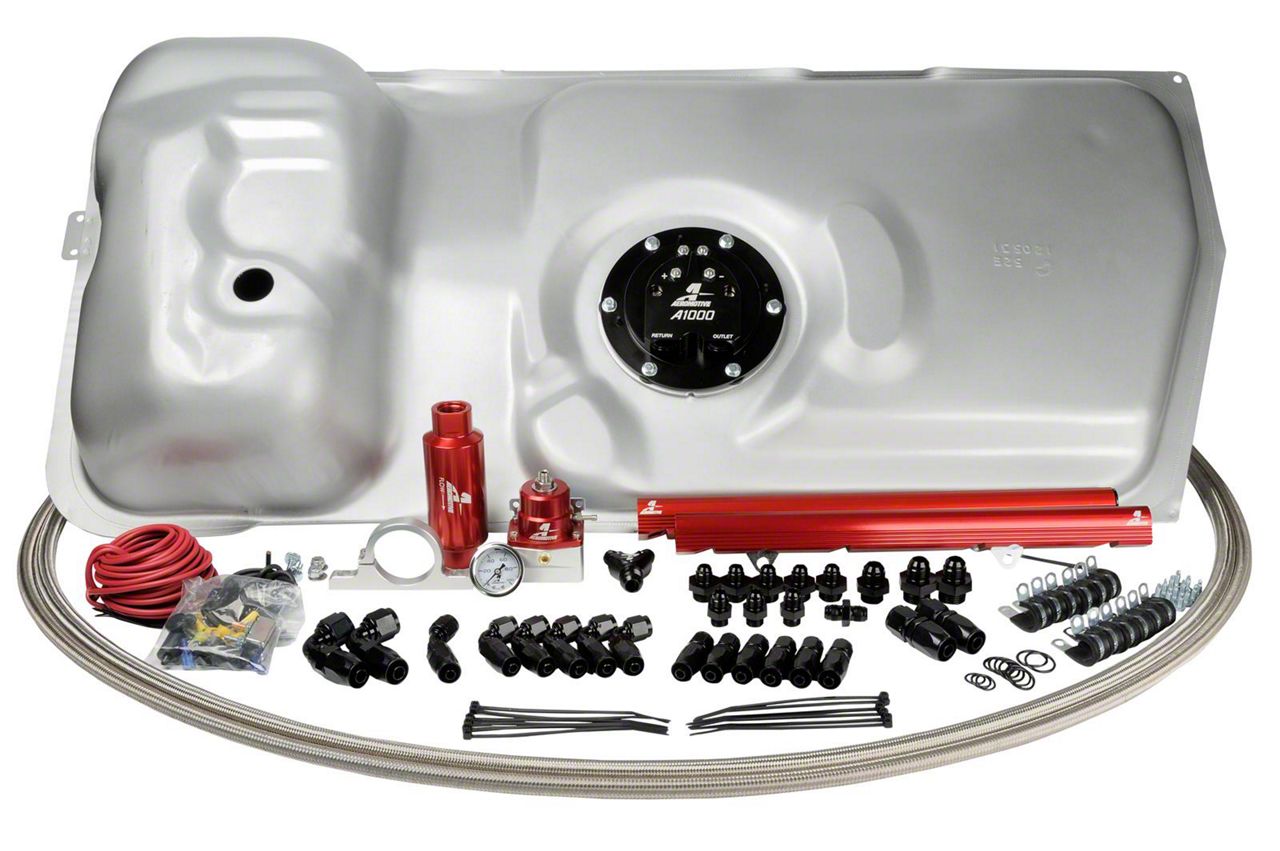

Aeromotive A1000 Stealth Fuel System (86-95 5.0L Mustang)Find parts that fit my vehicle
Item 421956
$0.00
Our Price
$2,989.95 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Complete Stealth Fuel System Upgrade
- Ideal for High Performance Vehicles
- A1000 Fuel Pump - Supports up to 1300 Horsepower
- CNC-machined, Billet Aluminum Fuel Rail Kit
- Baffled Fuel Tank, EFI Bypass Regulator and 10-Micron Post Pump Filter Included
- Bolts into Factory Location
- Fits 1986-1995 5.0L EFI Ford Mustang Models
Description
High Performance Upgrade. If you're running forced induction or nitrous setup on your 5.0L EFI V8 Mustang, upgrading the stock fuel system is a necessity to keep your engine from starving for fuel. Your weak stock fuel pump just isn't capable of keeping up with a modified engine's fuel demands, so upgrade to an Aeromotive A1000 Stealth Fuel System to maximize the power of your mods.
Complete Stealth Fuel System Upgrade. This Aeromotive A1000 Stealth Fuel System features a fuel tank that has an advanced baffling system with an A1000 fuel pump built right into the tank. This Kit includes Fuel Rails, an EFI Bypass Regulator, 10-Micron Post Pump Filter, and 2-inch Billet Filter Brackets. A Fuel Pump Wiring Kit as well as enough AN-08 Fuel Line with Hose-Ends are included for a complete and total installation.
Aeromotive A1000 Stealth Fuel Pump. Producing a very generous 600 pounds/hour flow rate (90 psi maximum), the Aeromotive A1000 Stealth Fuel Pump can support up to 1300 horsepower on naturally aspirated engines and up to 1000 horsepower on forced air inducted setups. The Aeromotive Stealth A1000 fuel pump includes an integral 100-micron stainless steel pre-pump filter with an ORB-08 outlet port and an ORB-08 return line port so you can plumb a true return-style system into your Mustang to support the big power you're making.
Fuel Rail Kit. Aeromotive High Flow Aluminum Fuel Rails replace those skinny stock fuel rails to reliably flow more fuel to your high performance engine. These Aeromotive fuel rails have a 5/8-inch inner diameter through bore, providing better flow which is capable of supporting up to 3,000 horsepower in racing applications. CNC machined to precise tolerances from lightweight billet aluminum each fuel rail is completed in a red anodized finish for corrosion resistance and features -10 AN high pressure ports.
EFI Bypass Regulator. Aeromotive designed their A1000-6 Injected Return Style Regulator to be adjustable from 40 to 75 PSI, with just a twist of a screw, making it ideal for a wide range of applications. CNC machined to precise tolerances from billet aluminum, this Aeromotive Adjustable Fuel Pressure Regulator is completed in a red anodized finish for corrosion resistance and features a 1/8-inch NPT gauge port.
Application. This Aeromotive A1000 Stealth Fuel System is designed to fit 1986-1995 Ford Mustang models equipped with the EFI 5.0L V8 engine.
Complete Stealth Fuel System Upgrade. This Aeromotive A1000 Stealth Fuel System features a fuel tank that has an advanced baffling system with an A1000 fuel pump built right into the tank. This Kit includes Fuel Rails, an EFI Bypass Regulator, 10-Micron Post Pump Filter, and 2-inch Billet Filter Brackets. A Fuel Pump Wiring Kit as well as enough AN-08 Fuel Line with Hose-Ends are included for a complete and total installation.
Aeromotive A1000 Stealth Fuel Pump. Producing a very generous 600 pounds/hour flow rate (90 psi maximum), the Aeromotive A1000 Stealth Fuel Pump can support up to 1300 horsepower on naturally aspirated engines and up to 1000 horsepower on forced air inducted setups. The Aeromotive Stealth A1000 fuel pump includes an integral 100-micron stainless steel pre-pump filter with an ORB-08 outlet port and an ORB-08 return line port so you can plumb a true return-style system into your Mustang to support the big power you're making.
Fuel Rail Kit. Aeromotive High Flow Aluminum Fuel Rails replace those skinny stock fuel rails to reliably flow more fuel to your high performance engine. These Aeromotive fuel rails have a 5/8-inch inner diameter through bore, providing better flow which is capable of supporting up to 3,000 horsepower in racing applications. CNC machined to precise tolerances from lightweight billet aluminum each fuel rail is completed in a red anodized finish for corrosion resistance and features -10 AN high pressure ports.
EFI Bypass Regulator. Aeromotive designed their A1000-6 Injected Return Style Regulator to be adjustable from 40 to 75 PSI, with just a twist of a screw, making it ideal for a wide range of applications. CNC machined to precise tolerances from billet aluminum, this Aeromotive Adjustable Fuel Pressure Regulator is completed in a red anodized finish for corrosion resistance and features a 1/8-inch NPT gauge port.
Application. This Aeromotive A1000 Stealth Fuel System is designed to fit 1986-1995 Ford Mustang models equipped with the EFI 5.0L V8 engine.
Fitment:
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
- 1994 Ford Mustang
- 1995 Ford Mustang
Aeromotive 17130
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) P/N 18690 Cobra-Top Stealth Fuel Tank
- (1) P/N 18679 A1000 Stealth Fuel Pump
- (1) P/N 16301 fuel pump wiring kit
- (1) 3-foot length of 10-ga. Black wire
- (1) 25-foot length of 10-ga. Red wire
- (1) 30-amp circuit breaker
- (1) 30-amp automotive relay
- (2) blue female blade connector
- (2) yellow female blade connector
- (5) yellow #10 stud ring connector
- (1) yellow 3/8-inch stud ring connector
- (6) tie-wraps
- 26 feet AN-06 stainless steel braided line
- 16 feet AN-08 stainless steel braided line
- (6) P/N 15650 AN-06 straight hose-end
- (1) P/N 15651 AN-06 45-degree hose-end
- (5) P/N 15652 AN-06 90-degree hose-end
- (2) P/N 15653 AN-08 straight hose-end
- (2) P/N 15655 AN-08 90-degree hose-end
- (1) P/N 12301 Filter 10-Micron Paper
- (1) P/N 13109 A1000-06 Fuel Pressure Regulator
- (1) P/N 14101 Ford 5.0L Billet Fuel Rails
- (1) P/N 15673 AN-08 to 2-AN-06 Y-block
- (2) ¼-inch flat washers
- (2) ¼-20 nyloc nuts
- (2) ¼-20 x 1” carriage bolts
- (12) tie-wraps
- (3) AN-06 o-ring
- (6) AN-08 o-ring
- (2) AN-10 o-ring
- (1) P/N 15602 AN-06 male/male flare union
- (5) P/N 15605 ORB-08 to AN-06 male flare
- (3) P/N 15606 ORB-06 to AN-06 male flare
- (1) P/N 15607 ORB-08 to AN-08 male flare
- (2) P/N 15610 ORB-10 to AN-08 male flare
- (12) cushioned clamps
- (12) self drilling screws
- (1) P/N 12305 2-inch billet filter bracket
- (1) P/N 15633 0-100psi fuel pressure gauge
