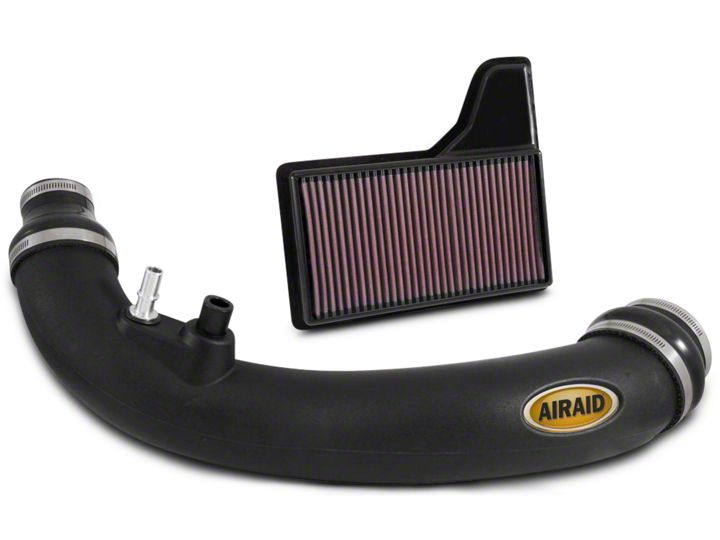

How to Install Airaid Jr. Intake Tube Kit - SynthaFlow Oiled Filter (15-17 EcoBoost) on your Ford Mustang

1. Remove the battery box cover in the cowl and disconnect the negative battery terminal.

2. Loosen the clamp on the intake tube and slide it off of the airbox. Gently pry the harness anchor out of the airbox and disconnect the air temp sensor.

3. Loosen the intake tube clamp on the airbox and slide it off. If you are installing an Airaid Jr. kit, replace the filter at this time.

5. Loosen the clamp on the turbo inlet coupler.

6. Disconnect the PCV and turbo bypass lines from the intake tube and remove the tube from the vehicle.

7. Insert the Grommet and Aluminum Fitting into the Airaid Intake tube as shown.

9. Slide the Reducer and Clamps onto the turbo side of the Intake Tube as shown. Leave the clamps loose for now.

9. Slide Hump Hose and Clamps onto air box outlet as shown. Leave the clamps loose for now.

9. Lower the Airaid Intake tube down into position and slide the reducer onto the turbo inlet.

10. Insert the large end of the Intake Tube into the Hu Apply the Airaid Bubble Decal onto the Intake Tube as shown.

12. Double check your work. Make sure all clamps, hoses, bolts, and screws are tight. Double check the hood clearance. Reconnect the negative battery cable and reinstall the cover.
