Find Wheel & Tire Kits for your Mustang

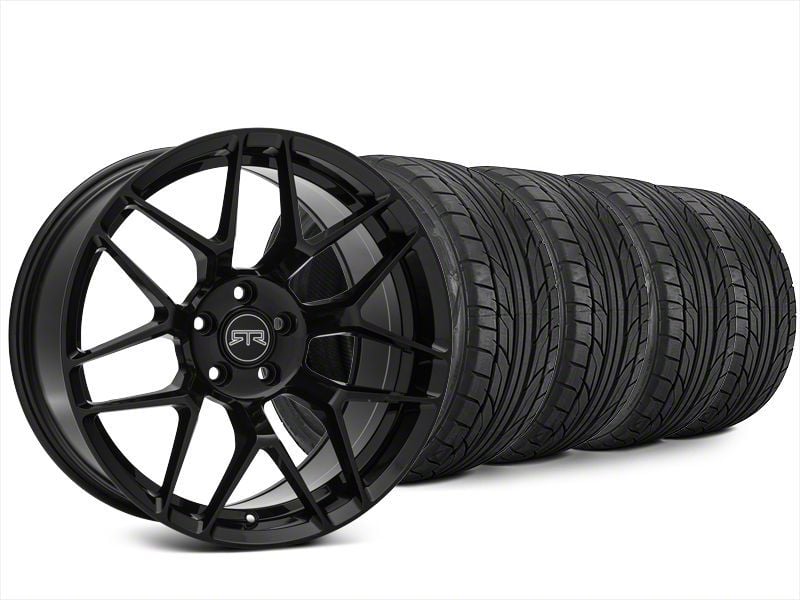

20x9.5 RTR Tech 7 Wheel & NITTO High Performance NT555 G2 Tire Package (15-23 Mustang EcoBoost w/o Performance Pack, V6)Find parts that fit my vehicle
Item 392559
$0.00
57 Reviews
5 Answers
Will this fit your Vehicle?
Item Options
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- (2) 20x9.5 Black RTR Tech 7 Wheels
- (2) 20x10.5 Black RTR Tech 7 Wheels
- (2) 255/35R20 NITTO Ultra High Performance NT555 G2 Tire
- (2) 285/30-20 NITTO Ultra High Performance NT555 G2 Tire
- Free Mounting & Balancing
- Free Optional Nitrogen Fill
- Fits 2015 to 2023 V6 or Ecoboost Mustangs
- Road Hazard Protection Plan Available
| Lift Required | Lowering Threshold Up to 2-Inches |
| Wheel Diameter | 20 Inch |
| Wheel Width | 9.5 |
| Wheel Color | Black, Black Chrome |
| Wheel Offset | 45mm |
| Wheel Style | Custom |
| Wheel Model | Tech 7 |
| Wheel Size | 20x9.5 |
| Tire Type | High Performance Summer |
| Tire Diameter | 27 |
| Tire Size | 285/30R20 |
| Tire Load Index | 97 (1609 lbs per tire) |
| Tire Model | NT555 G2 |
| Tire Speed Rating | (W) Up to 168mph |
| Tire Tread Depth | 11/32" |
| Tire Revs Per Mile | 747 |
| Tire Weight | 29 |
Description
Easy "One Click" Shopping. This staggered combo kit features two 20x9.5 Black RTR Tech 7 wheels and 255/35R20 NITTO NT555 G2 Ultra High Performance tires for the front with two 20x10.5 Black RTR Tech 7 wheels and 285/30-20 NITTO NT555 G2 Ultra High Performance tires for the rear. This popular Wheel and Tire Kit has been created for the exact specifications of your 2015-2023 Mustang for a guaranteed perfect fit with no rubbing or clearance issues.
Staggered Wheel and Tire Setup. Our staggered wheel and tire combo kit run wider wheels and tires on the rear of your Mustang for a more aggressive muscle car stance that looks great on both the street and the strip.

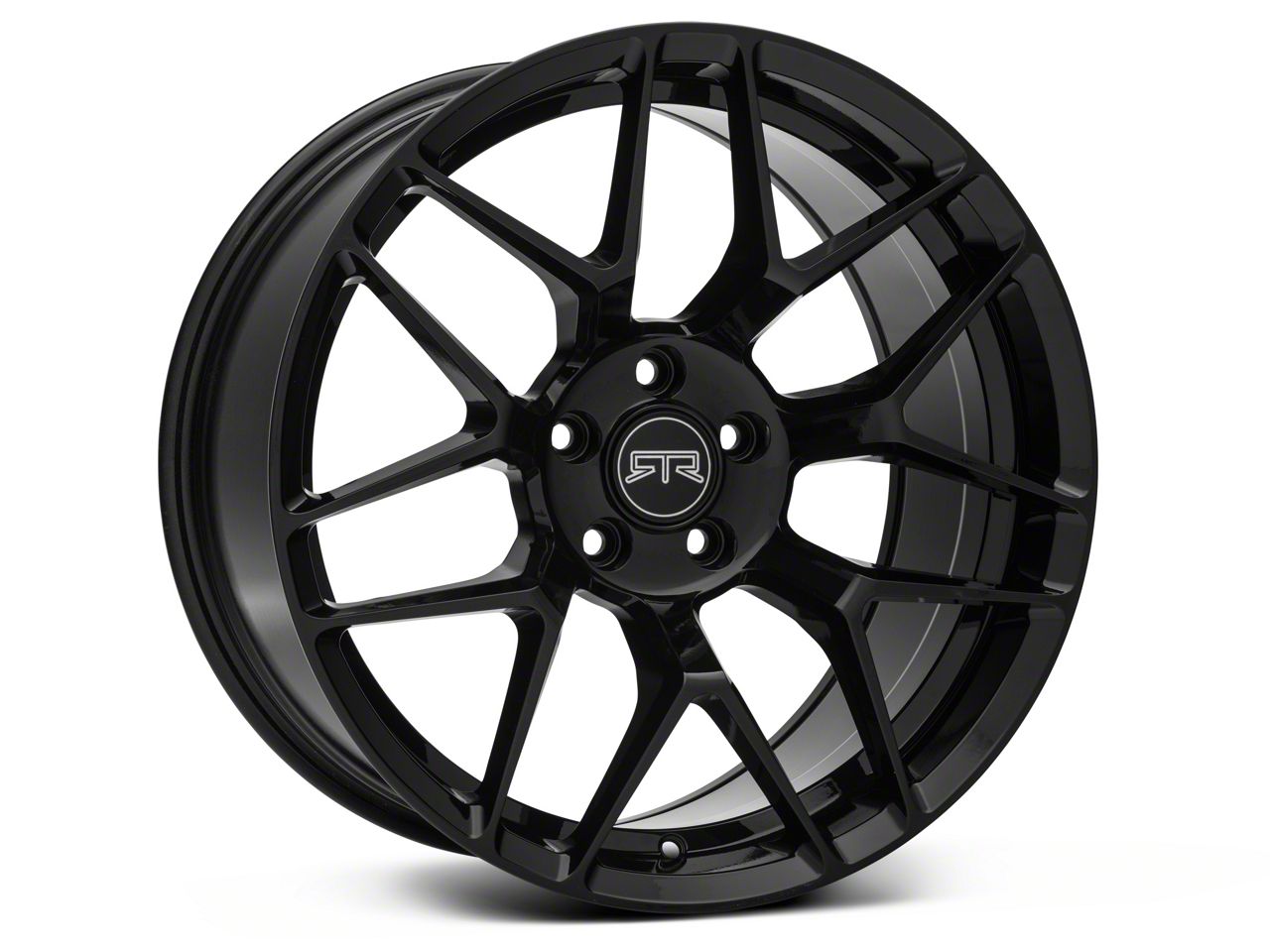

Black RTR Tech 7 Wheel. Flow-Forming is a unique casting and forming process that results in a wheel that is similar in strength to that of a forged wheel. The wheel is first low pressure cast in aluminum and is rapidly cooled to enhance its elastic strength and durability. The casting is then placed in a special flow forming tool that heats the wheel while rollers press against the barrel to pull the rim into its final width and shape. This “stretching” process improves the grain structure of the aluminum making the wheel much stronger and lighter than a standard cast aluminum wheel. This RTR Wheel only weighs 25lbs. 0
255/35R20 & 285/30-20 NITTO NT555 G2 Ultra High Performance Tires. Does the idea of track car handling performance make you smile? Then you need to get yourself a set of sticky Nitto NT555 G2 Ultra High Performance Summer Tires. Nitto specifically engineered their NT555 G2 Tires to improve the traction and handling performance of your Mustang in both dry and wet weather conditions. NT555 G2 Tires are for performance oriented drivers that want quick off the line acceleration and the ability to negotiate curves with total confidence whether they are on the street or at track.
Free Nitrogen Fill. AmericanMuscle is proud to bring you the option to fill your tires with pure nitrogen for FREE when we mount & balance your wheel and tire order. Filling your high performance tires with nitrogen can result in longer tire life and improved fuel economy. Nitrogen can also better regulate tire pressure changes that occur with the change in temperatures throughout the year, so your Stang will be ready to roll no matter what season it is!
Application. This staggered 20in Black RTR Tech 7 Wheel and NITTO Tire kit fits 2015 to 2023 V6 or Ecoboost Mustangs
Staggered Wheel and Tire Setup. Our staggered wheel and tire combo kit run wider wheels and tires on the rear of your Mustang for a more aggressive muscle car stance that looks great on both the street and the strip.
Black RTR Tech 7 Wheel. Flow-Forming is a unique casting and forming process that results in a wheel that is similar in strength to that of a forged wheel. The wheel is first low pressure cast in aluminum and is rapidly cooled to enhance its elastic strength and durability. The casting is then placed in a special flow forming tool that heats the wheel while rollers press against the barrel to pull the rim into its final width and shape. This “stretching” process improves the grain structure of the aluminum making the wheel much stronger and lighter than a standard cast aluminum wheel. This RTR Wheel only weighs 25lbs. 0
255/35R20 & 285/30-20 NITTO NT555 G2 Ultra High Performance Tires. Does the idea of track car handling performance make you smile? Then you need to get yourself a set of sticky Nitto NT555 G2 Ultra High Performance Summer Tires. Nitto specifically engineered their NT555 G2 Tires to improve the traction and handling performance of your Mustang in both dry and wet weather conditions. NT555 G2 Tires are for performance oriented drivers that want quick off the line acceleration and the ability to negotiate curves with total confidence whether they are on the street or at track.
Free Nitrogen Fill. AmericanMuscle is proud to bring you the option to fill your tires with pure nitrogen for FREE when we mount & balance your wheel and tire order. Filling your high performance tires with nitrogen can result in longer tire life and improved fuel economy. Nitrogen can also better regulate tire pressure changes that occur with the change in temperatures throughout the year, so your Stang will be ready to roll no matter what season it is!
Application. This staggered 20in Black RTR Tech 7 Wheel and NITTO Tire kit fits 2015 to 2023 V6 or Ecoboost Mustangs
- Replacement Hardware – SKU U3142H
Road Hazard Protection. AmericanMuscle is proud to offer an optional Road Hazard Tire Protection program to our customers who purchase a Wheel and Tire Package from us. With this program, you will receive a 3-Year/36 Month protection plan for changing of flat tires and flat tire repair.
36 Months of Protection. The Road Hazard Protection Program is good for 3-Years (36 Months) from the purchase date printed on the program certificate or until any part of the tire tread that comes in contact with the road has a tread depth of 2/32” or less, whichever comes first.
Flat Tire Changing Assistance. Enrolled customers are eligible for reimbursement of up to $75 for roadside flat changing assistance provided by a licensed service provider. This is limited to the roadside installation of the customer’s own usable spare tire. Customer must have a spare tire. The customer would pay the service provider for flat tire changing and then be reimbursed.
Flat Tire Repair. Enrolled customers are eligible for Flat Tire Repair up to $20 per tire. This repair would include labor and patch. Reimbursement is limited to two flat tire repair claims during the coverage terms of 3-Years/36 months. The customer would pay the service provider for flat tire repair and then be reimbursed.
Fitment:
- 2015 Ford Mustang
- 2016 Ford Mustang
- 2017 Ford Mustang
- 2018 Ford Mustang
- 2019 Ford Mustang
- 2020 Ford Mustang
- 2021 Ford Mustang
- 2022 Ford Mustang
- 2023 Ford Mustang
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (4) Wheels
- (4) Center Caps
- (4) Tires
- Hardware included:
- None Required
4.9
Customer Reviews (57)
Questions & Answers (5)
Will It Fit My Mustang
- EcoBoost - 15, 16, 17, 18, 19, 20, 21, 22, 23
- V6 - 15, 16, 17
