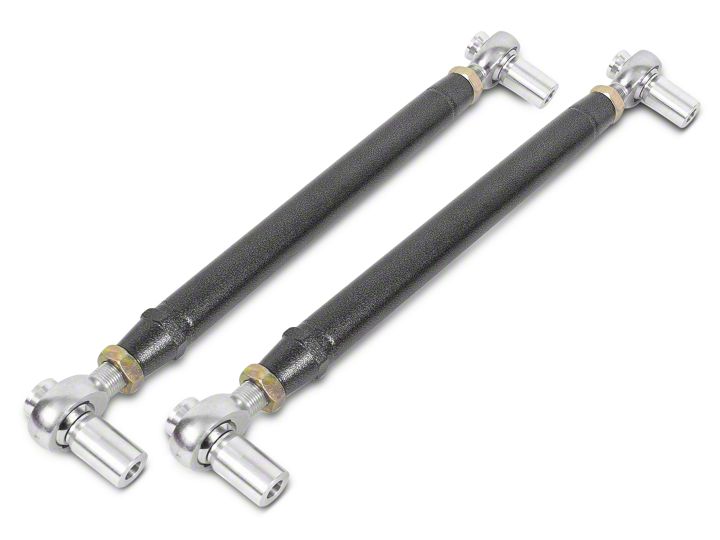

How to Install BMR Double Adjustable Rear Lower Control Arms - Rod Ends - Hammertone on your Mustang

1. Lift vehicle and support with jack stands under the  frame rails.

2. For ease of access, remove both rear wheels/tires.

3. As shown in IMAGE 1, some exhausts may block accessibility to the lower control arm bolts in the frame rail. If this is the case, remove the exhaust.

4. Support the rear end with the jack, then remove the lower control arms one side at a time using an 18mm wrench and 21mm socket.

5. Adjust the BMR control arms to the stock length then install them with the offset inward. Tighten the  mounting bolts to 131  ft/lbs.

6. Tighten jam nuts using 1- 1/16” and 1-14”  wrenches.

7. Re-install exhaust, if  necessary.

8. Re-install wheels/tires  then lower vehicle.
