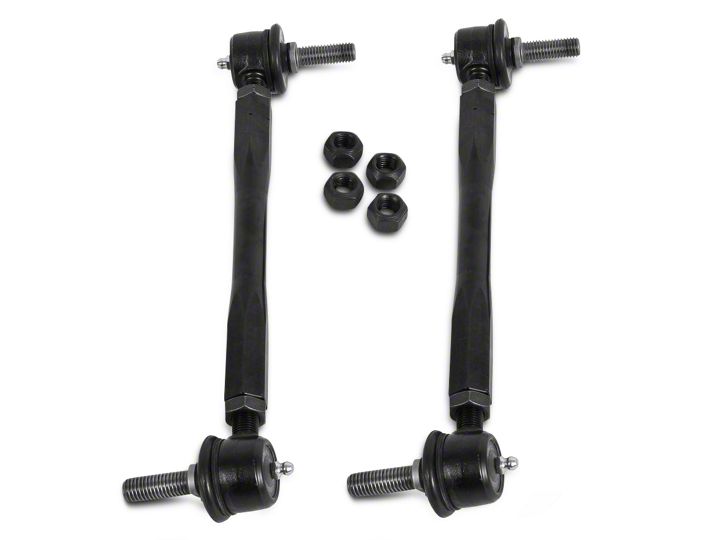

How to Install BMR Front End Links for Sway Bars - Black on your Mustang

1. Lift front of vehicle and remove both  wheels/tires.

2. Use an 18mm wrench to remove the  nuts from the OE sway bar end links. If  the entire shaft of the end link spins, use  an 8mm wrench to hold the shaft from  the end while loosening the nut.

3. Remove the OE end link.

4. Using the OE end link as a guide, adjust  one of the BMR end links to the same  length. Once adjusted, tighten the jam  nuts using two ¾” wrenches.

5. Install the BMR end link onto the  vehicle. Tighten the nuts using a 19mm  wrench. If the entire shaft spins while  tightening, use a 14mm wrench to hold  the base of the shaft while tightening  the nut.

6. With the jam nuts loose on the other  end link, adjust it until the end link fits  the mounting holes on the vehicle.  Tighten the jam nuts.

7. Duplicate step 5 for this end link.  NOTE: This is our recommended  installation procedure and will setup the sway bar and end links neutrally, for information on pre-loading your sway bar please contact BMR Tech.

8. Re-install the wheels/tires and lower the vehicle.
