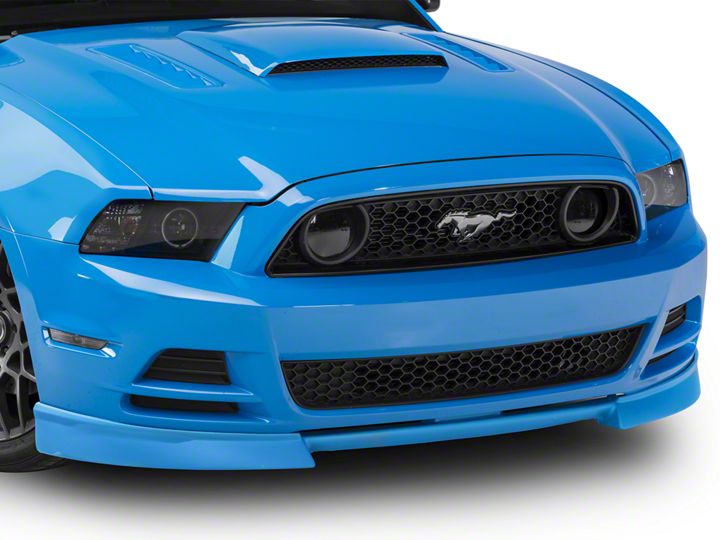

How to Install Cervini's C-Series Chin Spoiler - Unpainted (13-14 GT) on your Ford Mustang
Shop Parts in this Guide
Notice: Install new, unpainted parts according to these instructions! Then remove parts, paint them and re-install. Painted or Altered Parts are Non-Refundable!
Step 1:
Jack the car up and securly place on jack stands. Remove the 14 screws that connect the splash pan to the front bumper as shown in fi g A. Remove the 3 rear screws of the splash pan then lower and remove splash pan.
Step 2:
Remove the screws that connect the factory chin spoiler to the bumper in the inner wheel wells as shown in fi g B.
Step 3:
Remove the 4 push pins, 2 on each side of the bumper holding the chin spoiler in place as shown in fi g. C.
Step 4:
Remove the 2 screws toward the front holding the chin spoiler in place as shown in fi g. D.
Step 5:
Remove the remaining attachments with some pressure, pushing / pulling the center portion of the chin spoiler down, starting on one side, remove the chin spoiler. Remove all the threaded clips where the factory chin spoiler attached to the bumper as shown in fi g. E.
Step 6:
Holding the new chin spoiler in place install the 1/4”-20 bolts, nuts and washers through the chin spoiler and into the front bumper as shown in fi g. F & fi g G. (After the part has been painted, adhere the 2 sided tape to the bumper before tightening the screws in this step.)
Step 7:
Reinstall the 2 screws in each wheel well securing the sides of the chin spoiler to the bumper as shown in fi g. H.
Step 8: THIS STEP IS MODEL SPECIFIC!
GT & V6 MODELS ONLY!
On GT & V6 models, you will need to trim the splash pan portion of the Chin Spoiler across the 4 connecting tabs as shown in fi g. I, in order to fi t the under side of the GT & V6. Reinstall the splash pan. Insert the front of the pan below the bumper but inside the new chin spoiler. Now reinstall the rear screws of the splash pan. Install the 4 self tapping screws through the chin spoiler and into the splash pan as shown in fi g. J.
BOSS & California Special (CS) MODELS ONLY!
On BOSS & CS models, NO TRIMMING IS NEEDED! Reinstall the splash pan. Insert the front of the pan below the bumper but inside the new chin spoiler. Now reinstall the rear screws of the splash pan. Install the 4 Self Tapping Screws through the chin spoiler and into the splash pan as shown in fi g. J.
Step 9:
After the part has been painted, install the 2 sided tape as shown in fi g. K. Stop the tape 1 inch short from the corner as shown in fi g. L. When installing the chin spoiler to the bumper peel back and fold about 2 inches of each piece of the red tape backing then install to the car. Once the chin spoiler is postioned properly, peel the tape backing away and apply pressure to the part to adhere it to the car.
URETHANE PAINTING INSTRUCTIONS
VERY IMPORTANT: The following painting procedures MUST be followed EXACTLY for PROPER ADHESION and to prevent fish eyes.
1. To remove any mold release contaminants, clean the back of the part fi rst. Using 2 new clean rags, saturate the fi rst rag with plastic prep cleaner* and begin cleaning. Then use the second rag to remove the prep cleaner. Continuously fold both rags to their clean sides during the process. Use 3 sets of new rags throughout the process. This prevents mold release contaminants from transferring to the painted surface.
2. Repeat step one on the front of the part.
3. Rinse the part with water. Apply a generous amount of Ajax® or sand fi x* to a red scuff pad* (3M Scotch Brite Brand) and scrub the surface to be painted THOROUGHLY (especially where the 2-sided tape is installed, on the back side of the part, and all the hard to reach areas). Then rinse with water and dry. The scrubbed surface should be dull. If any shiny spots show, repeat the process on those areas.
4. Using another set of clean new rags, again clean the surface to be painted with plastic prep cleaner.
5. Spray the surface to be painted with adhesion promoter* including the areas where the 2-sided tape is installed (follow the instructions on the can for application and drying time).
6. Apply 3 to 4 coats of urethane primer* with fl ex additive* (follow the instructions on the can for application and drying time).
7. Wet sand primer with 600 grit sandpaper. Be careful not to sand through the primer. If you do, you MUST clean those areas with plastic prep cleaner, apply adhesion promoter and prime. Once the primer has dried, wet sand the areas that were touched up. Your surface is now ready for paint.
