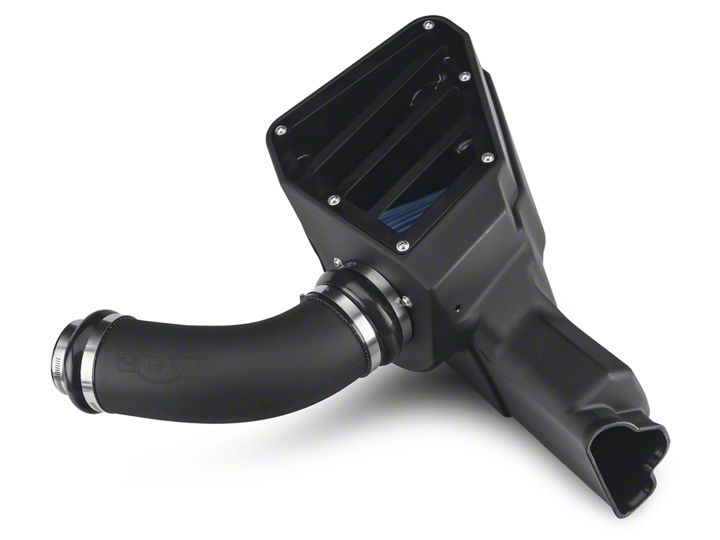

How to Install a C&L Cold Air Intake on Your 2015-2016 V6 Mustang

Step 1:

Disconnect the (2) breather lines from the intake tube, Loosen the hose clamps and remove the factory intake.

Step 2:

Remove the 10mm bolt holding the factory air box to the fender.

Step 3:

Install the provided grommets and aluminum fittings into the intake tube.

Step 4:

Install the provided grommets and aluminum fittings into the intake tube.

Step 5:

Install the air box using the factory fender bolt.

Then install the air filter.

Remove the protective film from the air box window and lid before installing with (6) 1⁄4” button head screws and washers.

Step 6:

Connect the C&L intake tube using the provided silicone couplers and hose clamps. Then connect the (2) breather hoses.
