Find Camshafts for your Mustang

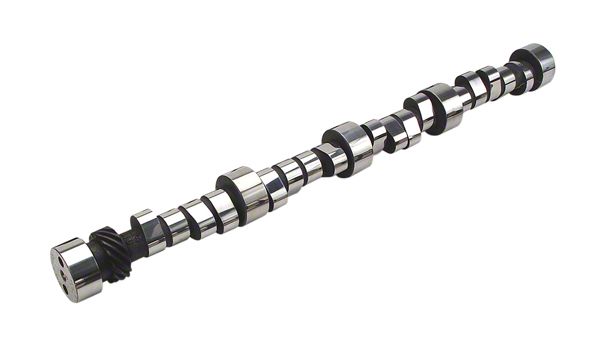

Comp Cams Stage 5 Xtreme Energy Computer Controlled 232/240 Hydraulic Roller Camshaft (86-95 5.0L Mustang)Find parts that fit my vehicle
Item 30149
$0.00
9 Reviews
9 Answers
Our Price
$522.95 each
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Street/Strip Performance for Naturally Aspirated Engines
- Improves Horsepower and Torque
- 2600-6500 RPM Operating Range
- Noticeable Change in Idle
- Hydraulic Roller Lifter
- Custom Calibration Required for Operation
- Not CARB Certified - Intended for Off-road Use
- Limited Warranty
- Sold Individually
- Fits 1986-1995 Mass Air Equipped 5.0L Mustang Models
Description
Street and Strip Performance. Have you installed an aftermarket intake manifold, heads, and exhaust headers on your 1986-1995 5.0L Mustang in the search for more power? If so, add the cherry to the top of the cake with a Comp Cams Stage 5 Xtreme Energy XE282HR Camshaft. This Comp Cams Xtreme Energy Cam is an excellent choice for both street and strip performance applications. With increased responsiveness and a step up in duration, more horsepower and torque can be felt from 2600-6500 RPMs. As an added bonus, this Xtreme Energy Cam will give your 5.0 a noticeable change in idle that is louder than stock, but that's not overbearing or obnoxious.
Calibration Required. Installation of this Comp Cam Camshaft will require custom tuning to reprogram the vehicles computer (ECU) for operation. By reprogramming your Mustangs ECU, you will be able to realize the full power potential that this Camshaft has to offer.
Not CARB Certified. This Camshaft is not CARB certified at this time, therefore it is not legal for use in California or other states adopting California emission standards. Not legal for use on pollution controlled motor vehicles; intended for off road use only.
Limited Warranty. Competition Cams, Inc. warrants that all of its products are free from defects in material and workmanship, and against excessive wear for a period of 12 months from date of purchase. This limited warranty shall cover only the original purchaser. This warranty is valid on camshafts only where new lifters and proper valve springs are used. Some exclusions may apply, please see manufacturer's warranty for details.
Application. This Comp Cams XE282HR Camshaft is designed for use on 1986-1995 Mass Air equipped 5.0L V8 Mustangs with modifications such as aftermarket heads, intake manifold, exhaust headers and steeper 3.73 rear gears.
Technical Note. This camshaft requires a minimum of a 3.73 rear-end gears and a custom tune. Automatic transmissions will require at least a 2500 RPM stall converter.
Calibration Required. Installation of this Comp Cam Camshaft will require custom tuning to reprogram the vehicles computer (ECU) for operation. By reprogramming your Mustangs ECU, you will be able to realize the full power potential that this Camshaft has to offer.
Not CARB Certified. This Camshaft is not CARB certified at this time, therefore it is not legal for use in California or other states adopting California emission standards. Not legal for use on pollution controlled motor vehicles; intended for off road use only.
Limited Warranty. Competition Cams, Inc. warrants that all of its products are free from defects in material and workmanship, and against excessive wear for a period of 12 months from date of purchase. This limited warranty shall cover only the original purchaser. This warranty is valid on camshafts only where new lifters and proper valve springs are used. Some exclusions may apply, please see manufacturer's warranty for details.
Application. This Comp Cams XE282HR Camshaft is designed for use on 1986-1995 Mass Air equipped 5.0L V8 Mustangs with modifications such as aftermarket heads, intake manifold, exhaust headers and steeper 3.73 rear gears.
Technical Note. This camshaft requires a minimum of a 3.73 rear-end gears and a custom tune. Automatic transmissions will require at least a 2500 RPM stall converter.
Fitment:
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
- 1994 Ford Mustang
- 1995 Ford Mustang
Comp Cams 35-522-8
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Camshaft
Tech Specs
Comp Cam Data Sheet
| Part Number: | 35-522-8 | Grind Number: | XE282HR |
| Lifter Type: | Hydraulic Roller Lifter | Engine Type: | FORD 5.0 (1982-2001) |
| RPM Range: | 2600 to 6500 | Valve Timing : | 0.006 |
| Lobe-Center Angle | 112 | Intake Center Line: | 108 |
| Intake | Exhaust | |
| Valve Lash: | Hyd. | Hyd. |
| Duration: | 282 | 290 |
| Duration @ .050" Lift: | 232 | 240 |
| Valve Lift: | 0.565 | 0.574 |
| Lobe Lift: | 0.354 | 0.360 |
| Valve Timing @ 0.006" Lift: | Open | Close |
| Intake: | 31 BTDC | 70 ABDC |
| Exhaust: | 79 BBDC | 30 ATDC |
5.0
Customer Reviews (9)
Reviews of Comp Cams Engine products have an average rating of 4.7 out of 5
Questions & Answers (9)
Will It Fit My Mustang
- GT - 87, 88, 89, 90, 91, 92, 93, 94, 95
- LX - 87, 88, 89, 90, 91, 92, 93
- Other - 86
