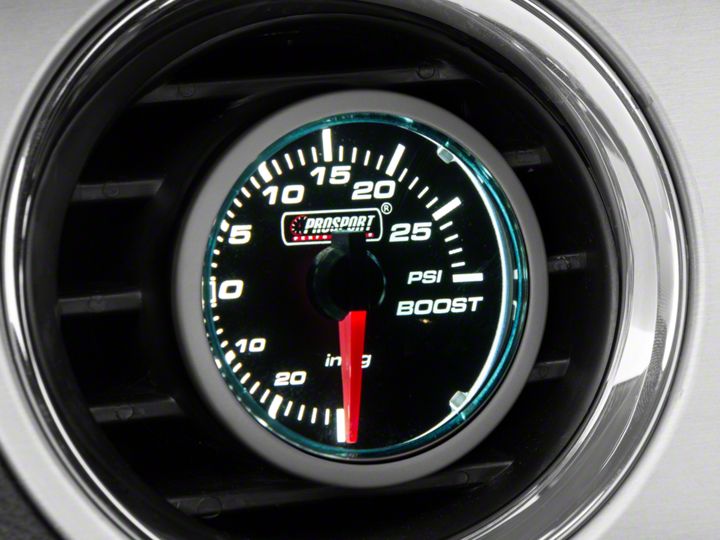

How to Install a Mustang Dual Color Boost/Vac Gauge - 30psi Electrical, Blue/White on your 1979-2015
Shop Parts in this Guide
Wiring Instructions
Red- 12v Accessory Power (also run to sender) Black-Ground
White- 12v Accessory power green- boost sender (Connects to white wire from sender)
Orange- Head light switch (12v Switch power)
SENSOR MOUNTING: Please mount the sensor Inside the cabin. Mounting it in the engine bay will expose it to high temps and possible water/moisture. We take no responsibility in damaged sensors by these elements.
Wiring Instructions
Red- 12V Accessory power
Black - Ground
White-Accessory power 12v
Blue- Head light switch(12v switch power)
