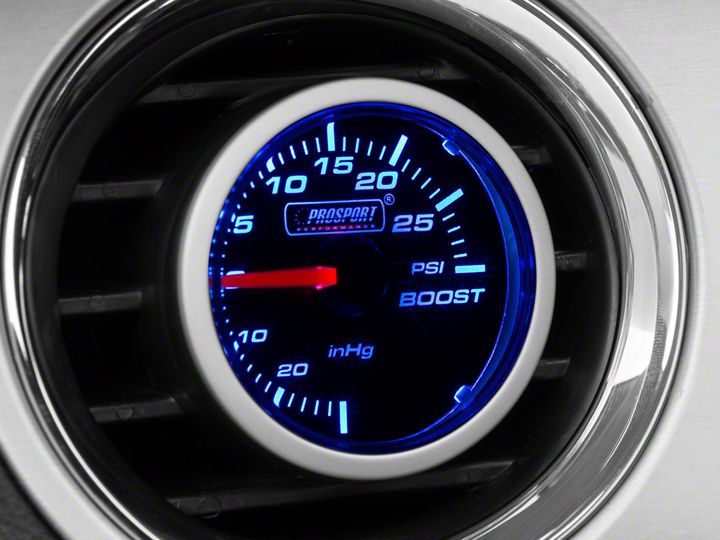

How to Install a Mustang Dual Color Boost/Vac Gauge - 30psi Mechanical, Blue/White on your 1979-2015

Cut boost line and install supplied plastic "T" fitting. Connect "T" fitting to In-Line Filter with supplied hose. Then connect In-Line Filter to sender with supplied hose.

Red- 12v Accessory Power
(also run to sender)
Black-Ground
White- 12v Accessory power
green-boost sender
(Connects to white wire from
sender)
Orange- Head light switch (12v
Switch power)
SENSOR MOUNTING: Please maunt the sensor Inside the cabin. Mounting It In the engine bay will expose II to high temps and possible water/moisture. We take no responsibility in damaged sensors by these elements.

Red- 12V Accessory power Black - Ground
White- Accessory power 12v Blue- Head light switch(12v switch power)
