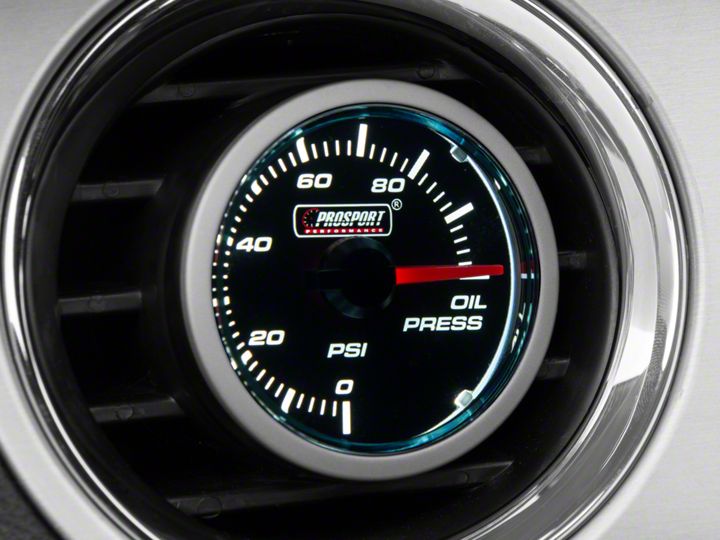

How to Install a Mustang Dual Color Oil Pressure Gauge - Electrical, Blue/White on your 1979-2015 Mu
Shop Parts in this Guide
Wiring Instructions
Red-12v Accessory power
White- 12v Accessory power
Black- Ground
Orange- 12v Headlight Switched Power
(This is a power source that only gets power when headlights are on)
Green- Connect to "G" terminal on sender
Sender
"Wk" Terminal- Ground
"G" Terminal- Attach green wire from gauge
Performance Oil/ Water Temperature Gauge
Wiring Instructions
Red-12v Accessory power
Black-Ground
White- 12v accessory power
Green- Temp Sensor
Orange- Head light switch
(12v Switch power)
