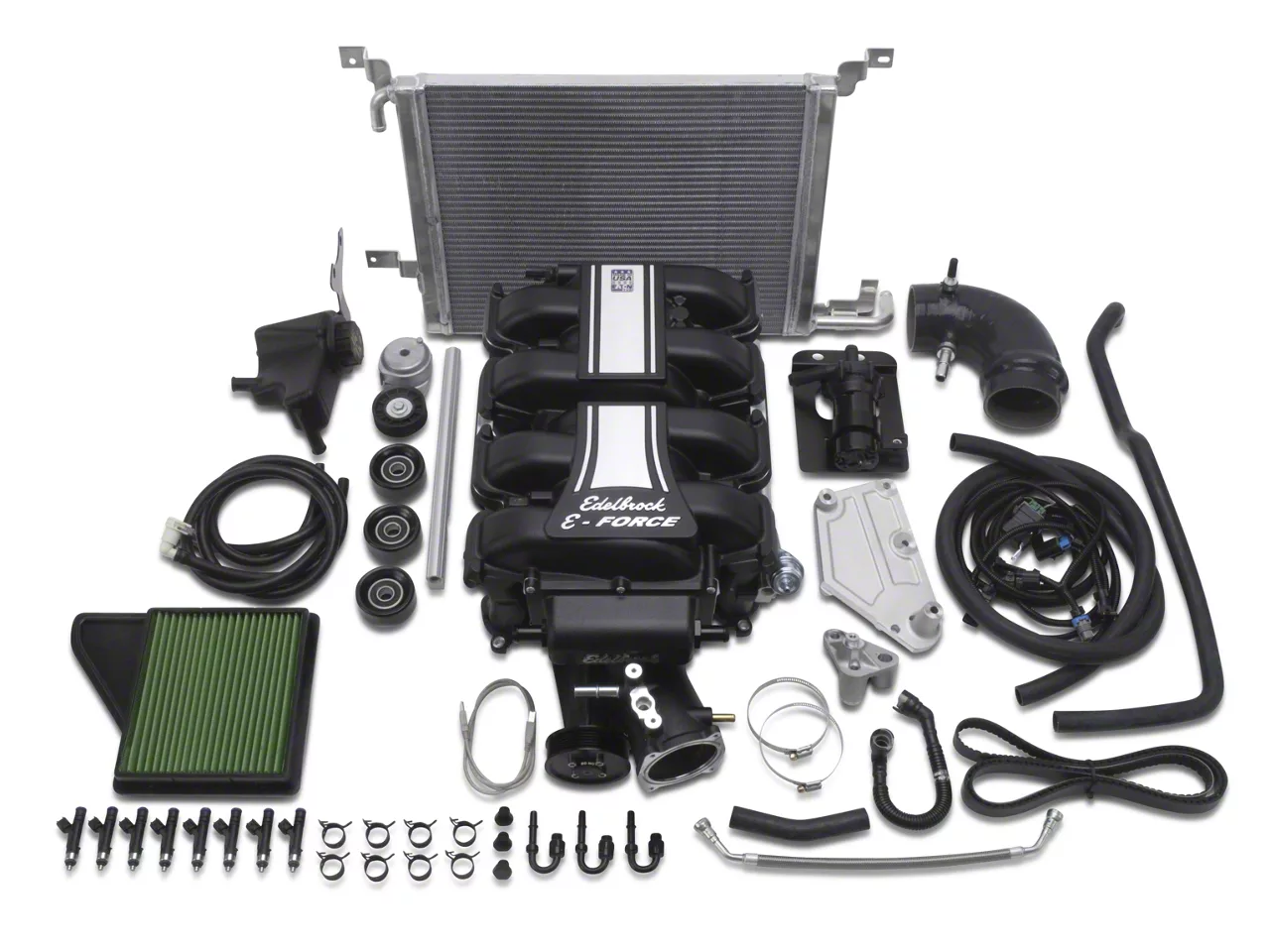

Edelbrock E-Force Stage 1 Street Supercharger Kit without Tuner (11-14 Mustang GT)Find parts that fit my vehicle

The Edelbrock supercharger Stage 1 Street system part #15880 for 2011-14 Mustangs increases the performance of your Coyote 5.0L 4V engine to 559 horsepower and 503 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer).

The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability.

We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential.

Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft.

Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

HANDHELD PROGRAMMER NOT INCLUDED.

Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

• System Type: Stage 1 - Street System
• Vehicle Model: 2011-2014 Ford Mustang GT
• Housing Material: Cast Aluminum
• Gasket Or Seal Included: Yes
• Oil Capacity: 150 mL
• Center Housing Cooling Type: Intercooler
• Internal Step Up: Yes
• Mounting Bracket Included: Yes
• Outside Pulley Diameter: 3.75 in
• Fuel Injector Type: 50 lb/hr
• Warranty: 36 Months
• Emissions Code EO Number: D-215-89
• Finish: Black Powder Coated
• Maximum Boost Pressure: 8
• Pulley Belt Width: 6-Rib

Installation Notes: Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.

Fitment:

• 2011 Ford Mustang
• 2012 Ford Mustang
• 2013 Ford Mustang
• 2014 Ford Mustang
