How to Install Ford Performance Cold Air Intake w/ ProCal Voucher on your Mustang

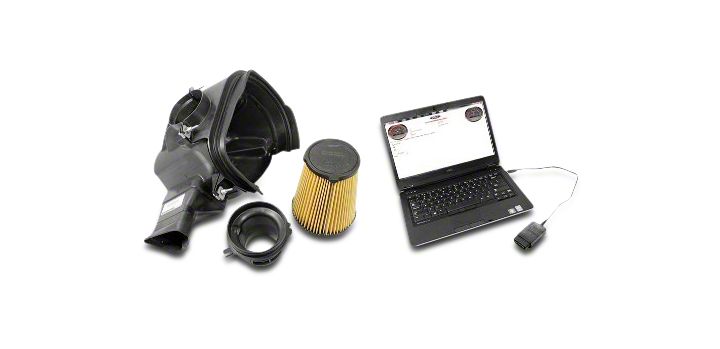

1-Filter adapter
1-Offset tie wrap
1-Inlet air temp sensor
1-Air cleaner assembly
1-Foam seal
1-Air Inlet
1-ProCal voucher and Procal 3 vehicle interface connector
1-EO label
1-USB Cable

Warning: Read ProCal voucher before starting installation!

Remove stock air cleaner housing

1. Loosen the clamp, position aside the air outlet pipe.

2. Detach the wiring harness retainer and disconnect the IAT sensor electrical connectors.

3. Remove the bolt.

Remove air cleaner assembly.

Install offset wire tie on IAT sensor harness.

Remove air filter. Save air filter for reuse.
Remove air bucket to hood rubber seal from top of air bucket by removing the 4 bolts.
Discard air filter to throttle body tube

Modify air inlet by cutting rubber seal.
Install inlet on air bucket

Install air bucket/air inlet assembly into vehicle. Do not bolt bucket down.

Install IAT sensor into adapter and install adapter into hose. Do not tighten clamp.

Route IAT sensor harness inside air bucket.

Drill hole for harness retainer.

Install air filter.
Reinstall air bucket to hood rubber seal using the 4 bolts. Torque to 71 lb. in.

Position air bucket and install bolt. Make sure modified rubber seal on inlet is folded down by reaching your hand into the inlet. Torque bolt to 71 lb. in.

Tighten clamps.

Install foam seal.
