How to Install Ford Racing GT350R Strut Tower Brace on your Mustang

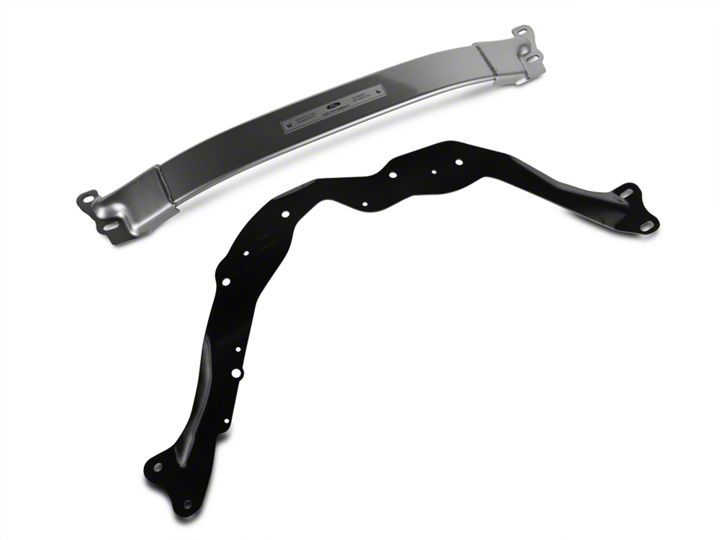

Strut Tower Brace Kit Contains the Following

1 Strut Tower Brace

1 Steel Cowl Extension

4 Nuts

If your car is factory equipped with a steel cowl extension it is the same as Ford Performance steel cowl extension. Removal is not necessary.

Battery Disconnect and Connect

Disconnect

NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.

1. Remove the retainers and the battery cover.

2. Loosen the nut and position the negative battery cable.
Torque: 44 lb.in (5 Nm)

3. Position the positive battery cable cover, loosen the nut, and position the positive battery cable. Torque: 44 lb.in (5 Nm)

Plastic Cowl Extension (if equipped)

Remove the retainers and the clips on the cowl panel grille.

1. Remove the seven (7) reusable retainers.

2. Do not depress and remove the 2 clips.

3. Lift cowl panel grill enough to access (2) bolts that retain plastic cowl extension. Wiper arms do not have to be removed.

4. Remove the remaining two (2) bolts and two (2) nuts that are not under the cowl panel grille

5. Remove plastic cowl extension.

Strut Tower Cross Brace Removal - If Equipped

1. Detach the wiring harness retainer.

2. Remove the nuts and the strut tower cross brace.

Strut Tower Cross Brace and Steel Cowl Extension installation

1. Lift the cowl panel to install the steel cowl extension. Reuse the original fasteners. Apply blue thread locking compound to the threads. Install all 4 bolts before tightening. This step only applies if car was equipped with plastic cowl extension or you are replacing the factory steel cowl extension. Torque: 26 Ib.ft (35 Nm)

2. Install the new strut tower cross brace with 4 new nuts. Torque: 41 Ib.ft (55 Nm)
3. Attach the wiring harness retainer.

Installation of Cowl Panel Grille

1. To install, reverse the removal procedure from earlier in the instructions. This step only applies if vehicle was equipped with plastic cowl extension or if you replaced the steel cowl extension.

Battery Connect

Connect

1. To connect, reverse the disconnect procedure from earlier in the instructions.

NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.
