Find Intake Manifolds & Plenums for your Camaro

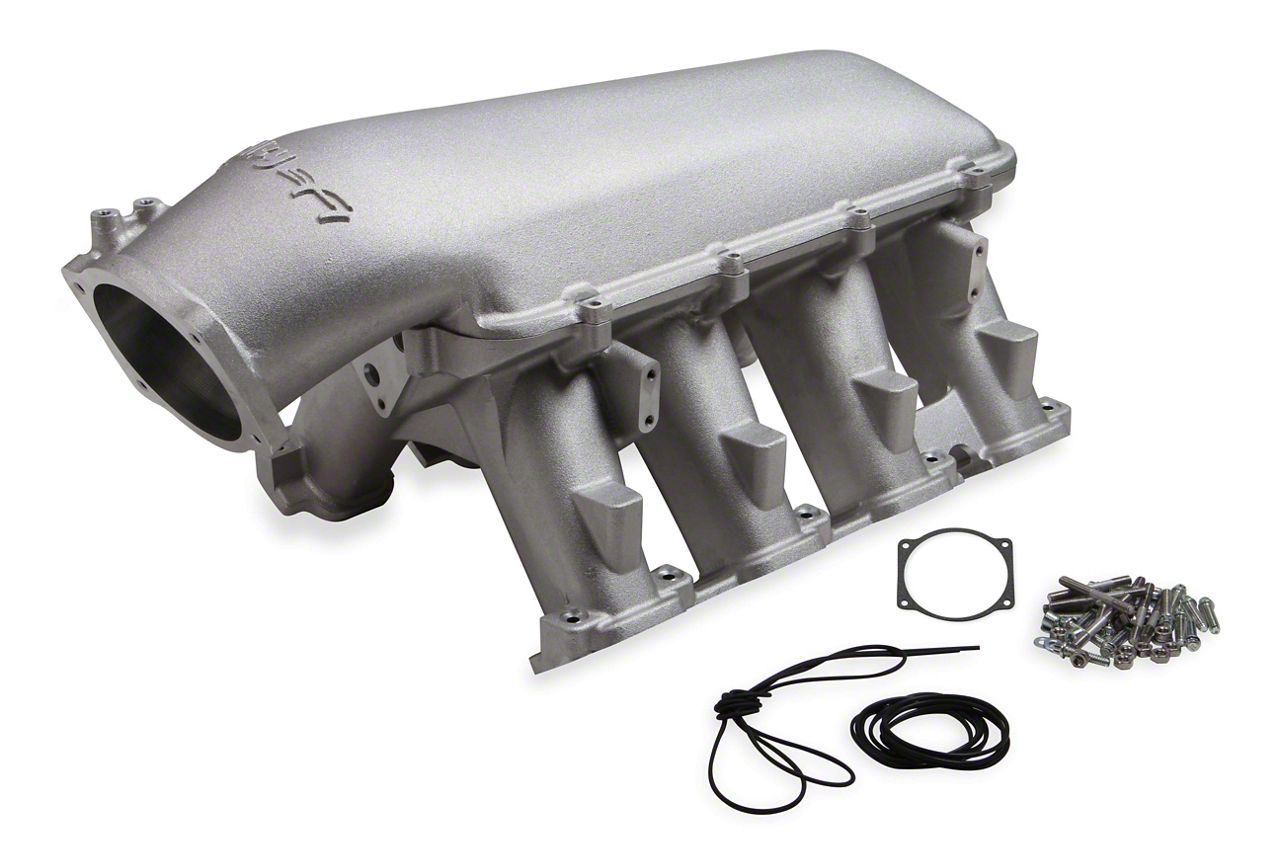

Holley Gen V LT1 Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount and without Port EFI Provisions (16-24 Camaro SS)Find parts that fit my vehicle
Item CC12099
$847.76
On Sale
-10% $847.76 kit Was $941.95
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Provides Opportunities for Customization
- Operates on 3500 to 8000+ RPM Power Band
- Compatible with the Gen V LT1 Engine
- Modular Design with Removable and Swappable Plenum Top
- CNC-Machined Cast-Aluminum Hi-Ram Manifold
- Cast Satin Finish
- Features 92mm LS Throttle Body Mount
- Head Flange Comes with Clearance for Fuel Supply to High-Pressure Pump
- Includes Holley EFI Fuel Rails
- Anodized and Machined 3/8-Inch Fuel Rail Kits with 8AN O-Ring Fittings
- 13.34-Inch Overall Height
- 549 Cubic Inches Plenum Volume Capacity
- 9.44-Inch Height at Plenum Flange
- 6.50-Inch Runner Length
- 2.06-Inch High x 1.53-Inch Wide Port Size
- Installation Requires Advanced Mechanical Skills
- Limited 90-Day Warranty
- Designed for All 2016-2024 Chevrolet Camaro SS Models
Description
Push Your Camaro to Its Limits. Take your track performance up a whole ‘nother level with the Holley Performance Gen V LT1 Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount and without Port EFI Provisions. This intake manifold features Holley’s Hi-Ram Series manifold that provides an astounding 549 cubic inches plenum capacity. It operates on a high 3500 to 8000+ RPM power band, really putting your Camaro through its paces. If it’s power gains you’re looking for, this is the mod you want.
Swappable Plenum Top. One of the best things about this Intake Manifold is its modular design. It allows the plenum top to be swapped, porting disassembled, and induction systems customized. You can redesign your Camaro’s engine performance according to your driving demands.
Cast Aluminum Construction. The intake manifold is manufactured using cast aluminum molds. It’s CNC-machined for precision looks and crafted by welders with fine attention to detail. The surfaces are finished with cast satin for corrosion protection and great looks under the hood. The kit also comes with Holley EFI Fuel Rails, which are machined, laser-etched, and anodized finished for corrosion protection.
Advanced Installation-Level. This is one of those mods that may require professional help. The installation involves several components and retuning is needed to optimize the performance after the installation.
Limited 90-Day Warranty. This Gen V LT1 Hi-Ram Intake Manifold comes with a limited 90-day warranty. Coordinate with Holley Performance immediately if you think you may have some defective parts delivered.
Application. This Holley Performance Gen V LT1 Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount and without Port EFI Provisions is designed for all 2016-2024 Chevrolet Camaro SS models.
Fitment:
- 2016 Chevrolet Camaro
- 2017 Chevrolet Camaro
- 2018 Chevrolet Camaro
- 2019 Chevrolet Camaro
- 2020 Chevrolet Camaro
- 2021 Chevrolet Camaro
- 2022 Chevrolet Camaro
- 2023 Chevrolet Camaro
- 2024 Chevrolet Camaro
Holley 300-143
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LT1 Hi-Ram
- (1) 92mm LS Throttle Body
- (1) Fuel Rail Kit
- (1) EFI Plenum Top Kit
- (1) Installation Hardware
4.5
Reviews of Holley Intake Products (17)
Reviews of Holley Intake products have an average rating of 4.5 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Camaro
- SS - 16, 17, 18, 19, 20, 21, 22, 23, 24
