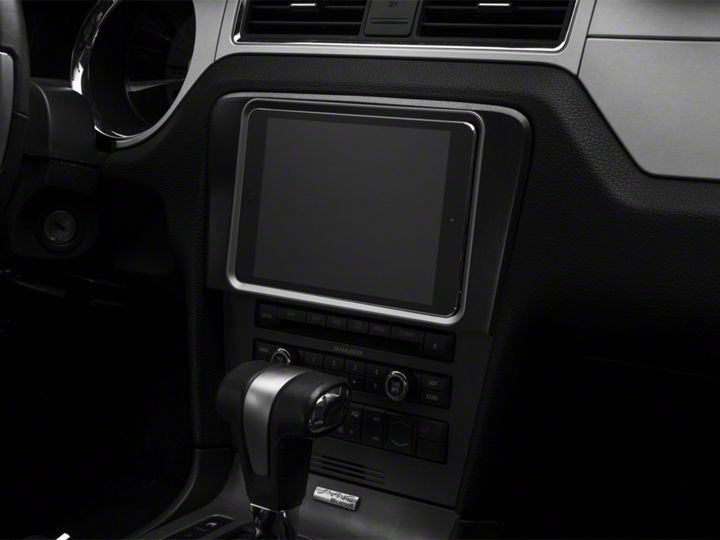

How to Install iPad Dash Kit - Mini 1, 2, 3 on your Mustang

Installation Time

30 minutes

Tools Required
  • Ratchet
  • 7mm
  • Super glue
  • 3M Masking tape
  • Spacer
View PDF Guide
American Muscle
Shop Parts in this Guide

Removal Procedure:

1. Firmly grip the center console and lift up to release the clips held in.

2. Once center console is removed, remove the (2) 7mm bolts.


3. Unplug and set aside


Positioning iPad Kit and installing magnets:

4. While console if lying face up, use the supplied spacer so that the iPad kit will have the correct spacing. Apply 3m masking tape to hold in place.


5. Flip over. Place magnets on opposite side to find the exact location. Scuff up plastic and apply super glue and place magnets. Let sit for 5-10 minutes


6. Remove 3m tape and spacer. Reinstall in vehicle and enjoy


Installation Instruction written by American Muscle customer Desmond Brandon 3.17.17
