How to Install JLT V3.0 Satin Oil Separator - Driver Side (15-17 Ecoboost) on your Ford Mustang

It is recommended to use a lift or place the front of the car on jack stands.

1. Remove the stock line from the PCV Valve under intake manifold on the engine block to the connection behind the throttle body

2. Use the su lied bolt and nut to mount JLT bracket to the tab on the driver side shock tower.

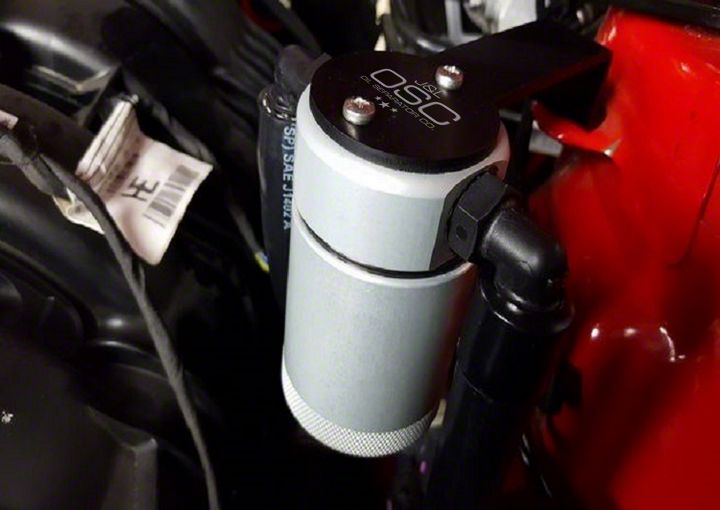

3. Use the supplied screws to mount the JLT Separator assembly to the JLT bracket routing the front hose under the intake for the fitting behind the throttle body and the rear hose down toward the engine mount.

From above route the hose under the throttle body and on to the fitting and push the connection locking tab.

4. ​From under side route rear hose to PCV connection on the engine block

To properly clean the filter in the Oil Separator spray any degreaser or solvent through it and let it air dry. Clean it every 10,000 miles. Thanks for the business. If you have any questions, please e-mail infoPJLTtruecoldair.com or call 757-335-1940. Our hours are Monday-Friday. 8:00am - 5:00pm Eastern Time.
