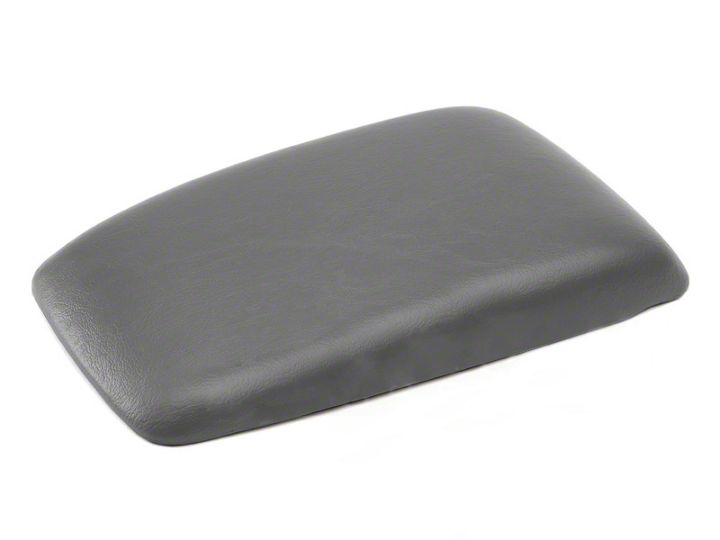

How To Install a Center Console Arm Rest Pad Titanium Gray in Your 1987-1993 Mustang

Installation Time

5 minutes

Tools Required
  • Phillips Screwdriver
American Muscle
Shop Parts in this Guide

Removal Procedure:


Step 1: Start by opening the center console arm rest.


Step 2: Next taking the Phillips screwdriver unscrew the screws holding the armrest pad onto the trim and Armrest bracket, There should be 4 total.


Step 3: Once removed the arm rest pad and trim should be free to pull off the bracket.

Installation Procedure:


Step 1: Take your new arm rest pad and align it with the trim.


Step 2: Once aligned Screw in the two top screws about half way so the pad can move around on the trim.


Step 3: Take the pad and trim and align it with the console bracket, The bracket should slide between the Arm rest pad and the trim.


Step 4: After bottom holes are lined up take the two remaining screws and screw them in, Not to tight remember it is plastic, and finish tightening the two top screws.


Step 5: Enjoy your new Arm rest pad


Installation Instructions written by AmericanMuscle Customer Vance Clark 8.17.2014
