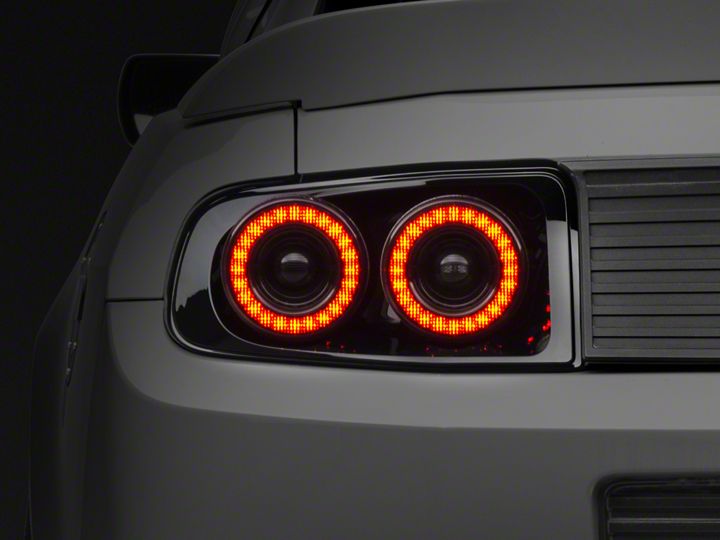

How to Install Raxiom Dual Halo LED Tail Lights on your Mustang

Step 1: Open the trunk to gain access to the interior panels.

Step 2: Remove the plastic trunk liner by removing the (4) twist off plastic knobs. Unclip the panels electrical connector and then remove the panel from the vehicle.

Step 3: Fold back the interior panel to access the (3) 11mm nuts securing the tail light to the vehicle. Loosen and remove the nuts. Unplug the tail lights electrical connection.

Step 4: Push out the wiring grommet and feed the plug through the hole.

Step 5: Install the Raxiom light. Connect the electrical connection and tighten the factory nuts.

Step 6: Install the tail light and interior panels in the reverse order.
