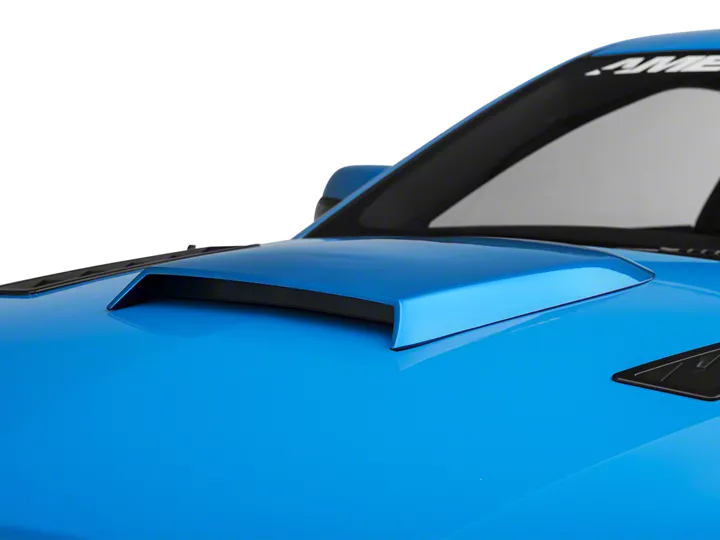

How to Install Roush Hood Scoop - Pre-Painted on your Mustang

Before installing your Roush Performance Product(s), read through the entire installation procedure and check to make sure all items are present.

LIMIT OF LIABILITY STATEMENT

The information contained in this publication was accurate and in effect at the time the publication was approved for printing and is subject to change without notice or liability. Roush Performance Products (RPP) reserves the right to Revise the information presented herein or to discontinue the Production of parts described at any time.

1. SAFETY REQUIREMENTS

STOP! READ IMPORTANT SAFETY
CAUTIONS AND WARNINGS BEFORE PROCEEDING.

IMPORTANT SAFETY NOTICE

Appropriate disassembly, assembly methods and procedures are essential to ensure the personal safety of the individual performing the kit installation. Improper installation due to the failure to correctly follow these instructions could cause personal injury or death. Read each step of the installation manual carefully before starting the actual installation.
1. Always wear safety glasses for eye protection.
2. Place ignition switch in the OFF position.
3. Always apply the parking brake when working on a vehicle.
4. Block the front and rear tire surface to prevent unexpected vehicle movement.
5. Operate the engine only in well-ventilated areas to avoid exposure to carbon monoxide.
6. Do not smoke or use flammable items near or around the fuel system.
7. Use chemicals and cleaners in well-ventilated areas.
8. Batteries produce explosive gases, which can cause personal injury. Therefore, do not allow flames, sparks or flammable substances to come near the battery.
9. Keeps hands and any other objects away from the radiator fan blades.
10. Keep yourself and your clothing away from moving parts when the engine is running.
11. Do not wear loose clothing or jewelry that can get caught in rotating parts or scratch surface finishes.

2. Paint Preparation

1. Wipe each part with plastic prep (Dupont® 2319 or equivalent)
2. Wipe entire part with tack cloth
3. Apply adhesion promoter (Dupont® 2330S or equivalent) prior to color and clear coat applications. This part is made of TPO (Thermoplastic Polyolefin) and requires a promoter for paint adhesion.

3. Vehicle Preparation

1. Clean hood surface thoroughly before using drill template.
2. Open hood and remove pushpins from insulating liner (see FIGURE A).
3. Remove liner and set all removed parts, including pushpins, aside for reinstallation.
4. Find hood centerline by measuring side-to-side at front and rear of hood. Mark center with tape.
5. Align drill template with centerline of tape marks and washer nozzles (see FIGURE B). Secure template in place with tape, using care to avoid covering over hole positions.
6. Mark hole centers with automatic center punch. Be careful not to use excessive force and damage hood.
7. Remove template and drill seven 5 mm holes from topside of hood.
8. De-Burr all holes and remove shavings from area.
Note: It is recommended that a rust prohibitor be used for all metal that has been drilled or cut.

4. Hood SCOOP Preparation

1. Install supplied Grill to hood scoop using supplied M6 HexFlange Nuts, qty 3. (see Figure C)
2. Install supplied tape to hood scoop (see Figure D).
• Tape, Adhesive 8x240mm (scoop rear), qty 1.
• Tape, Adhesive 12x250mm (scoop sides), qty 2.
3. Install supplied u-studs to hood scoop, qty 7 (see Figure E).

5. Hood SCOOP Installation

1. Trial fit Hood Scoop to hood. DO NOT remove red tape backing at this time. Verify proper alignment and consistent gaping to fascia surface.
2. After fit is reviewed, remove parts for final assembly.
3. Remove 1" section of protective backing from tape strip creating tab for easy removal with hood scoop in installed position.
4. Position hood scoop to hood and verify proper alignment.
5. Remove remaining red protective covering from tape strip by pulling tab.
6. Install supplied 7 nuts and Torque to 2 - 3 N-m. Reduce torque if sheet metal starts to bend.
7. Reinstall hood insulating liner and push-pins.
8. Hood Scoop installation is complete.

Note: If items are missing or for any questions regarding the installation of this kit, please contact Roush Performance toll free at 1-800-59-ROUSH.
