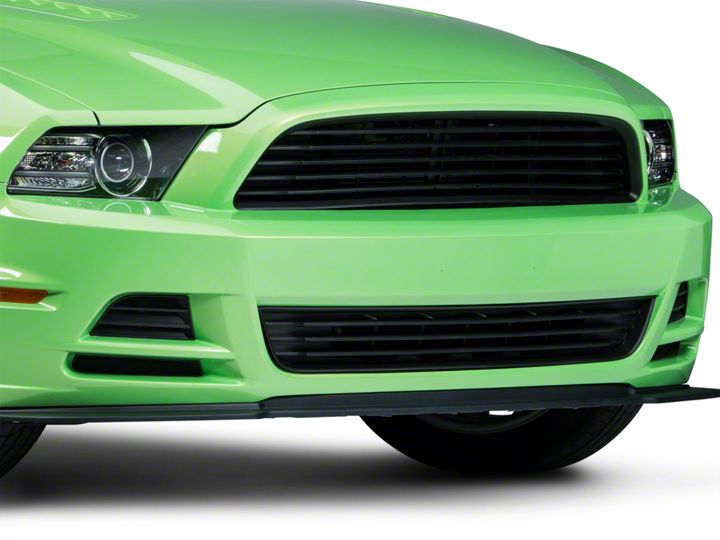

How to Install a Roush High Flow Lower Grille on your 2013-2014 GT and V6 Mustang

Before installing your ROUSH Performance Product(s), read through the entire installation procedure and check to make sure all items are present. Contact ROUSH Customer Service at 1-800-59-ROUSH, weekdays from 9:00 AM to 5:00 PM EST, with any questions regarding fit, missing parts or instructions that are unclear to you.

LIMIT OF LIABILITY STATEMENT
The information contained in this publication was accurate and in effect at the time the publication was approved for printing and is subject to change without notice or liability. ROUSH Performance Products (RPP) reserves the right to revise the information presented herein or to discontinue the production of parts described at any time.

SAFETY REQUIREMENTS
STOP! READ IMPORTANT SAFETY CAUTIONS AND WARNINGS BEFORE PROCEEDING.
Appropriate disassembly, assembly methods and procedures are essential to ensure the personal safety of the individual performing the kit installation. Improper installation due to the failure to correctly follow these instructions could cause personal injury or death. Read each step of the installation manual carefully before starting the actual installation.
• Always wear safety glasses for eye protection.
• Place ignition switch in the OFF position.
• Always apply the parking brake when working on a vehicle.
• Chock the front and rear tires to prevent unexpected vehicle movement.
• If working without a lift, always consult vehicle manual for correct lifting specifications.
• Operate the engine only in well-ventilated areas to avoid exposure to carbon monoxide.
• Do not smoke or use flammable items near or around the fuel system.
• Use chemicals and cleaners in well-ventilated areas.
• Batteries produce explosive gases, which can cause personal injury. Therefore, do not allow flames, sparks or flammable substances to come near the battery.
• Keep hands and any other objects away from the radiator fan blades.
• Keep yourself and your clothing away from moving parts when the engine is running.
• Do not wear loose clothing or jewelry that can get caught in rotating parts or scratch surface finishes.
• Allow the engine, cooling system, brakes and exhaust to cool before working on a
WORK SAFELY!
Perform this installation on a good clean level surface for maximum safety and with the engine turned off.

SECTION A - Removal
The following section will guide you through the removal of the factory lower grille.
1. Turn the steering wheel fully to the right to gain access to the two (2) 7 mm bolts on the LH side of the vehicle. Repeat on the RH side of the vehicle, turning the steering wheel fully to the left. • To install, tighten bolts to 1.3 Nm (12 Ib-in).

2. Remove the three (3) 7 mm outer lower valance bolts on the RH side. Repeat on the LH side.
• To install, tighten bolts to 3.2 Nm (28 Ib-in).

3. Remove the front six (6) 8 mm bolts, the rear five (5) 7 mm bolts and pull down and back to remove the lower air deflector.

• To install, tighten bolts to 3.2 Nm (28 Ib-in).

4. From the underside of the vehicle, access the rear of the lower grille. Using a suitable trim tool, release the twelve (12) retaining tabs.
Note: Back side of bumper cover shown.

5. Once the lower grille is removed, it will be necessary to modify the existing tab-slots on the front fascia lower grille opening. Mark a cut line along the eight (8) tab slots as shown in the image below. The slots will be cut so they are flush on the inner side of the opening.

6 . Using an airsaw , cut along the eight (8) marked lines from step 5 to remove the
interfering tab from the lower grille opening.

7 . Locate the center slot on the lower side of the lower grille opening.

8. Measure 10 mm up from the bottom of the slot. Draw a line parallel to the slot, 10 mm from the bottom of the slot. Connect the lines as shown in the image below to form a rectangle the width of the slot, at a height of 10 mm.

9. Cut along the lines drawn in step 8 to form an open rectangle the width of the slot, at a height of 10 mm.

10. Apply adhesion-promoter ()to the surface where tape is to be applied. Apply on the lip of the part, at the parting line. Allow to set for 60 seconds.

11. Peel the clear backing from the tape and install the tape to the areas where adhesion promoter was applied in step 9. The orientation of the red pull tab is not important. Once the tape is installed, fold the pull tab so it hangs over the finished side of the lower grille.

SECTION B - Installation
1. Install the new lower grille; position the grille (1313X-17K945) into the bumper cover and install the thirteen (13) retainer clips (20860). Push the retaining clips firmly onto the grille tabs.

2. With the lower grille installed, remove the red tape film on the lower and upper mounting surface of the grille by grasping the red pull tab and pulling it toward the opposite corner of the grille.

3. To fully adhere the tape, firmly press against the upper and lower surface of the grille

• To install the lower valance panel, reverse the removal procedure.

Congratulations!!! You have completed the installation of your new ROUSH performance Products 2013 Mustang Lower Grille Kit.
