Before installing your ROUSH Performance Product(s), read through the entire installation procedure and check to make sure all items are present. Contact ROUSH Customer Service at 1-800-59-ROUSH, weekdays from 9:00 AM to 5:00 PM EST, with any questions regarding fit, missing parts or instructions that are unclear to you.

SECTION A – Removal

The following section will guide you through the removal of the factory upper grille.

1. With the vehicle in NEUTRAL, position it on a hoist, raise and properly support.

2. Open the hood and remove the eight (8) pin-type retainers and the upper radiator sight shield.

3. Remove the four (4) pin-type retainers and the four (4) 8 mm bolts from the top of the bumper cover.

● To install, tighten bolts to 3 Nm (27 lb-in).

4. Turn the wheel to the right to gain access to the three (3) 7 mm bolts on the LH side of the vehicle and repeat on the RH side of the vehicle.

● To install, tighten bolts to 1.3 Nm (12 lb-in).

5. Remove the three (3) 7 mm outer lower valance bolts on the RH side. Repeat on the LH side.

● To install, tighten bolts to 3.2 Nm (28 lb-in).

6. Remove the front six (6) 8 mm bolts, the rear five (5) 7 mm bolts and pull down and back to remove the lower air deflector.

● To install, tighten bolts to 3.2 Nm (28 lb-in).

7. Disconnect the two (2) side marker light connectors on the LH and RH side.

CAUTION: To protect the bottom of the bumper cover from damage, place on a protective surface once removed.

8. Pull outward to unsnap the LH and RH sides of the bumper cover.

NOTE: If equipped, disconnect the fog lamp connectors.

9. Pull at the area shown on the bumper cover to remove and place on a suitable work surface.

10. If equipped, remove the six (6) (three each side) 7 mm bolts and remove both LH and RH fog lamps.

11. Release the fourteen (14) retaining tabs and remove the grille from the bumper cover.

SECTION B – Installation

1. Install the new grille; position the grille (R1313-8202) into the bumper cover and install the fourteen (14) U-clips (C29019-014).

● Install the Roush grille badge (R1313-8202SQR) if purchased separately.

● To install the front bumper cover, reverse the removal procedure.

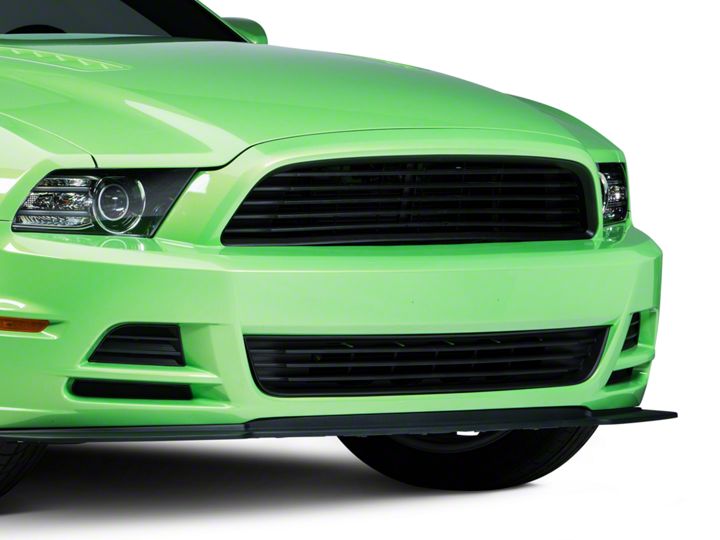

Congratulations!!! You have completed the installation of your new ROUSH Performance Products 2013 Mustang Upper Grille.
