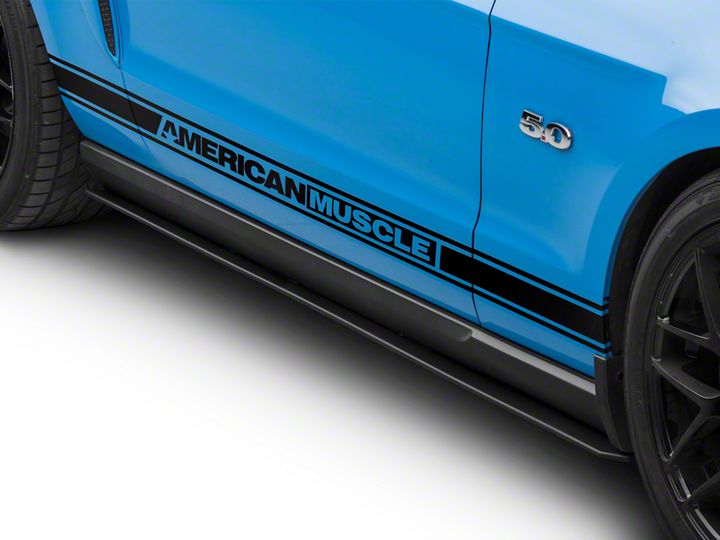

HOW TO INSTALL AN RTR SIDE SPLITTER ON YOUR 2010-2014 MUSTANG

Part # 1011-7000-01

Application: 2010-2014 Mustang

Installation Instructions

Before installing your RTR components, rear through the entire installation process and check to make sure all items are present. Contact RTR at 866-839-7444 9am-5pm EST week days for any questions regarding fit, missing parts or instructions that are unclear to you.

Equipment and Supplies Required

Isopropyl Alcohol
Pliers
Drill
¼” Drill Bit
Phillips Screw Driver
Soft Lint-Free Cloth
Electrical tape

Recommended Equipment and Supplies Required

3M General Purpose Adhesive Cleaner (PN 08984) Or
3M Prep Solvent 70 Low VOC Cleaner (PN 08973)

USE EXTREME CAUTION WHEN WORKING UNDERNEATH VEHICLE. Never get
near or underneath vehicle until you are confident that it is safely supported and will not move or fall from its raised position.

DO NOT USE A BUMPER JACK!

LIMIT OF LIABILITY STATEMENT

The information contained in this publication was accurate and in effect at the time the
publication was approved for printing and is subject to change without notice or liability.  Mustang RTR reserves the right to revise the information presented herein or to discontinue the production of parts described at any time.

SAFETY REQUIREMENTS

STOP! READ IMPORTANT SAFETY CAUTIONS AND WARNINGS BEFORE
PROCEEDING.

IMPORTANT SAFETY NOTICE

Appropriate disassembly, assembly methods and procedures are essential to ensure
the personal safety of the individual performing the kit installation. Improper installation due to the failure to correctly follow these instructions could cause personal injury or death. Read each step of the installation manual carefully before starting the actual installation.

1.  Always wear safety glasses for eye protection.
2.  Place ignition switch in the OFF position.
3.  Always apply the parking brake when working on a vehicle.
4.  Chock the front and rear tires to prevent unexpected vehicle movement.
5.  If working without a lift, always consult vehicle manual for correct lifting
specifications.
6.  Operate the engine only in well-ventilated areas to avoid exposure to carbon
monoxide.
7.  Do not smoke or use flammable items near or around the fuel system.
8.  Use chemicals and cleaners in well-ventilated areas.
9.  Batteries produce explosive gases, which can cause personal injury.
Therefore, do not allow flames, sparks, or flammable substances to come
near the battery.
10. Keep hands and any other objects away from the radiator fan blades.
11. Keep yourself and your clothing away from moving parts when the engine is
running.
12. Do not wear loose clothing or jewelry that can get caught in rotating parts or
scratch surface finishes.
13. Allow the engine, cooling system, brakes, and exhaust to cool before working
on a vehicle.

WORK SAFELY!

Perform this installation on a good clean level surface for maximum safety and
with the engine turned off.

Installation

1.  Select the LH Rocker Splitter. The LH and RH Rocker Splitters are marked on the
back side near the center of the part. Refer to figure 1.

2.  With an assistant, hold the left rocker splitter in position and visually note where
the foam tape is to adhere to the factory rocker panel molding. Refer to figure 2.
Remove the rocker splitter.

3.  Clean the noted area and apply the 3M 4298 Adhesion Promoter to the factory
rocker panel molding.

4.  Using a pair of pliers, reach into the rocker panel molding pockets as shown and
pull the (8) push pins from the left side rocker panel molding and discard. Refer
to figure 3. The rocker panel molding will remain in place with the upper fasteners
retaining it to the body.

5.  Prepare the rocker splitter for installation by bending and creasing the tape pull
tabs as shown in figure 4. Do not expose or touch the foam tape.

6.  Loosely install the left side rocker splitter and eight (8) new push pins. Ensure
that the foam tape pull tabs are accessible. Refer to figure 5. The picture shows a
large gap for clarity. Press the push pins in, leaving a 1/8” to 1/4” gap.

7.  Starting at the front and ensuring that the factory rocker panel molding is nested
into the recessed feature in the rocker splitter (refer to figure 6), fully insert the
eight (8) push pins. The handle of a screw driver works well to fully press the
push pins in.

8.  Pull the four (4) tape pull tabs to remove the tape backing. Refer to figure 7.

9.  Press the left side rocker splitter into place. Apply firm pressure at 3-4 inch
intervals along the entire length of the rocker splitter to ensure a strong bond.


10. Using the installed left side rocker splitter as a template, drill five (5) ¼” holes into
the factory rocker panel molding as shown in figure 8.

Assembly Tip: Place serveral wraps of electrical tape 1” from the tip of the drill
bit to act as a drill stop. Refer to figure 8.

11. Install a new push pin into each of the five (5) drilled holes. Refer to figure 9.

12. Repeat steps 1-11 for the right side rocker splitter.

Congratulations! You have completed the installation of the Side Rocker Splitters.
