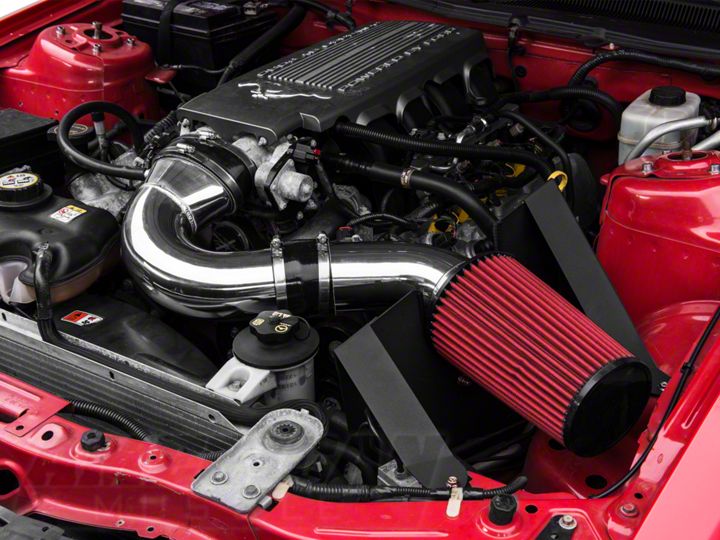

How to Install C&L Short Ram Air Intake w/ 85mm MAF on your Mustang
Installation Time
1 hours
Tools Required
- Phillips bit
- Regular Screwdriver
- Socket Wrench
- Socket Extension
- Socket Set
Shop Parts in this Guide
Contents:
(2) - Coupler
(5) - Hose Clamps
(2) - Hard Pipes
(1) - Heat Shield
(1) - Rubber spacer
(4) - Washers
(2) - Nuts
(2) - Bolts
It is recommended that you have an additional person available to help during this installation, parts can be awkward to hold and support by yourself. Block wheels and set parking brake before beginning work. Disconnect the Negative (-) battery cable.
-Remove the PCV hose.
-Loosen the hose clamp on the throttle body.
-Unplug Mass Air Flow sensor
-Remove the bolt holding in the factory air box.
-Install Coupler onto throttle body.
-Slide oval pipe into coupler.
**Coupler is very tight but it does t.
-Install heat shield using the factory
ABS bracket bolt, and the factory air
box mounting bolt.
- Install the rubber bracket for the
intake tube using supplied washer and nut.
-Install the trim seal to heat shield
edge.
-Install the Mass Air Flow sensor in
the new intake tube.
-Join the pipes with the supplied
coupler, and bolt to the rubber
bracket on the heat shield.
-Install air filter
-Plug in the Mass Air Flow sensor.
