How to Install SR Performance Upper Control Arm on your Mustang

Step 1:

Move the seats forward to access the rear seat bottom. Feel for the clips (1) on either side, push them to release the rear seat. Remove from the car.

Step 2:

Using a 24mm socket, remove the rear upper control arm bracket bolt.

Step 3:

From the underside of the vehicle, locate the upper control arm and upper control arm bracket. Using a 21mm socket, remove the upper control arm from the axle. Then using an 18mm socket, remove the (2) bracket bolts. Remove the assembly from the vehicle.

Step 4:

Remove the upper control arm from the bracket using a 27mm socket and a 21mm wrench.

Step 5:

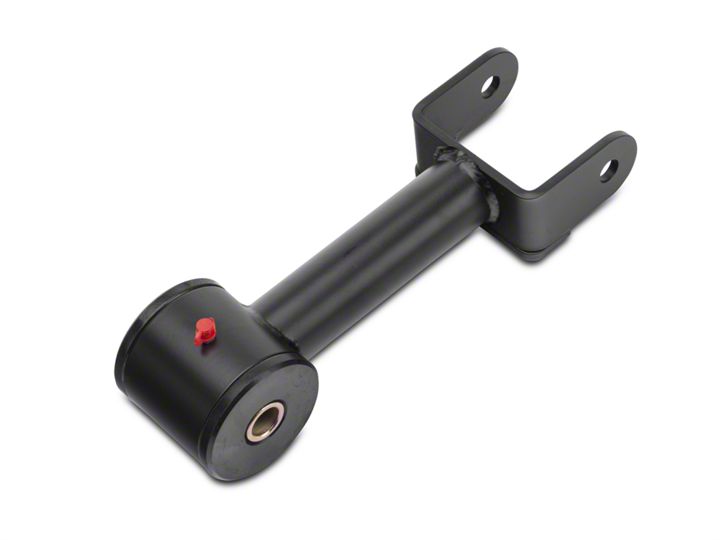

Install the SR upper control arm in the bracket using the factory bolt.

Step 6:

Reinstall the SR upper control arm with the installed bracket. Torque all bolts to factory spec. Be sure to grease the bushing as needed.
