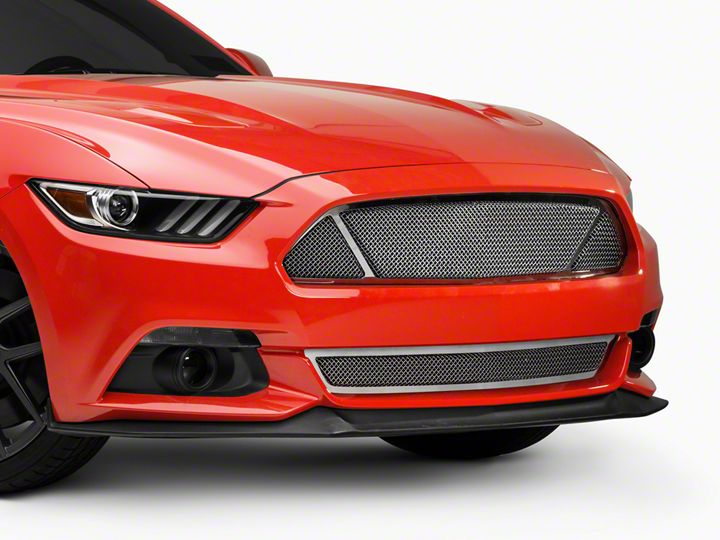

How to Install T-REX Polished Upper Class-Series Overlay Mesh 3-Window Grille - Combo on your Mustan

1) There are eight plastic clips to take off the black plastic cover shroud.

2) To remove the front fascia, on each side of the bumper, use the 8mm socket to remove six screws and the 5mm socket to remove two smaller screws.

1) There are eight plastic clips to take off the black plastic cover shroud.

With the factory bumper unit placed face down on a flat cushioned surface

1) Place the mesh grille overlay on top of the factor grille according to te grille edge.

2) Push down the 16 mounting fasteners around the plastic factory clips to hold the mesh with grille.

3) Reinstall the center bumpter soft gasket. It will slightly overlap onto the new Upper Class 3 Windows Grille frame edge. Grille is mounted. Inspect and review your work. Check for alignment and any loose fittings or fasteners.

4) Reinstall the bumper unit onto the vehicle in the processed reversed.

Grille and umper installation complete!

3) On each side of the front tires, using a flat screwdriver remove plastic clips.

4) Use the 7mm wrench and remove one other bolt on each side of veicle.

6) Take the bumper out by the two sides near the front corner lap.

7) Carefully unplug the headlight cable connections. There are three on each side.

8) The bumper should now be ready for removal. Place it face down on a flat cushioned surface.

9) Using a flat screwdriver, carefully remove the center bumper soft gasket (fig 10) and set aside to reinstall.

10) Using a flat screwdriver and a rigid plastic spatula, remove factor plastic clips along the edge. Bumper removal complete!
