Find Audio & Electronic Accessories for your Challenger

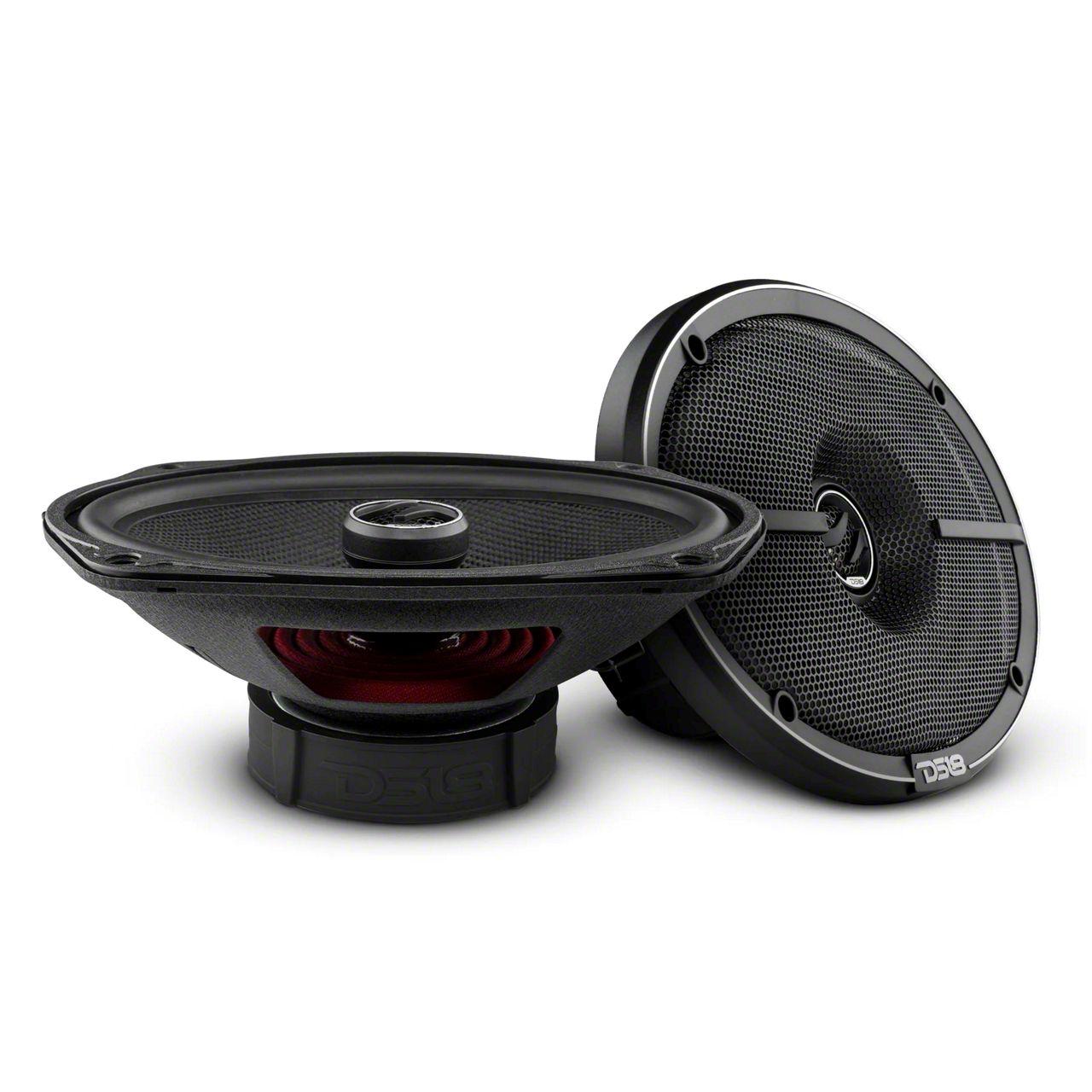

DS18 ZXI 6x9-Inch 2-Way Coaxial Speakers with Kevlar Cone; 360 Watts (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item CH22437
Challenger Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$119.95 kit
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- ZXI 6x9-Inch 2-Way Coaxial Speakers with Kevlar Cone
- Comes with a 1.20-Inch Voice Coil Diameter (On Midrange)
- Made with KSV Voice Coil Former Material (On Midrange)
- Constructed with Barium Ferrite Magnet (On Midrange)
- Integrated with EISV Winding Material (On Midrange)
- Incorporated with Rubber Surround (On Midrange)
- Crafted with Steel Basket (On Midrange)
- Frequency Response: 31.5Hz-20KHz
- Nominal Diameter: 6 x 9-Inch
- Nominal Impedance: 4 Ohm
- MAX Power Handling: 360W
- Number of Ways: 2-Way
- Sensitivity (1w/1m): 92dB
- RMS Power Handling: 120W
- Recommended HI Pass Crossover: 50Hz
- Voice Coil Diameter: 0.8-Inch (On Tweeter)
- Glass Fiber Cone Material Construction (On Tweeter)
- Incorporated with EISVM Winding Material (On Tweeter)
- Integrated with Neodymium Magnet Material (On Tweeter)
- Built with KSV Voice Coil Former Material (On Tweeter)
- With PEI Diaphragm Material (On Tweeter)
- Nominal Diameter: 1-Inch (On Tweeter)
- Engineered for Universal Applications
Description
Superior Sound Quality. Tune up your audio experience with the DS18 ZXI 6x9-Inch 2-Way Coaxial Speakers, featuring a Kevlar cone and engineered for universal applications. These speakers come with a 1.20-inch voice coil diameter in the midrange, made with KSV voice coil former material for superior sound quality. The midrange is constructed with a barium ferrite magnet and integrated with EISV winding material, ensuring crisp and clear audio output.
Rubber Surround. The midrange also features a rubber surround and is crafted with a steel basket for durability. With a frequency response of 31.5Hz-20KHz and a nominal diameter of 6 x 9 inches, these speakers deliver a wide range of sounds. The nominal impedance is 4 Ohm, with a MAX power handling of 360W and RMS power handling of 120W. They offer a sensitivity of 92dB and are recommended for a HI Pass crossover of 50Hz.
Glass Fiber Cone. The tweeter features a 0.8-inch voice coil diameter, constructed with glass fiber cone material, and incorporated with EISVM winding material. The neodymium magnet material in the tweeter ensures high-quality treble, while the KSV voice coil former material and PEI diaphragm material contribute to the overall sound clarity. The nominal diameter of the tweeter is 1 inch, making it an ideal size for high-frequency sound reproduction.
Installation. Putting these DS18 ZXI 6x9-Inch 2-Way Coaxial Speakers with Kevlar Cone on your ride is easy and requires no drilling.
Application. These DS18 ZXI 6x9-Inch 2-Way Coaxial Speakers with Kevlar Cone fit universal applications.
DS18 ZXI-694
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Fan Switch
- (1) Sensor Kit
