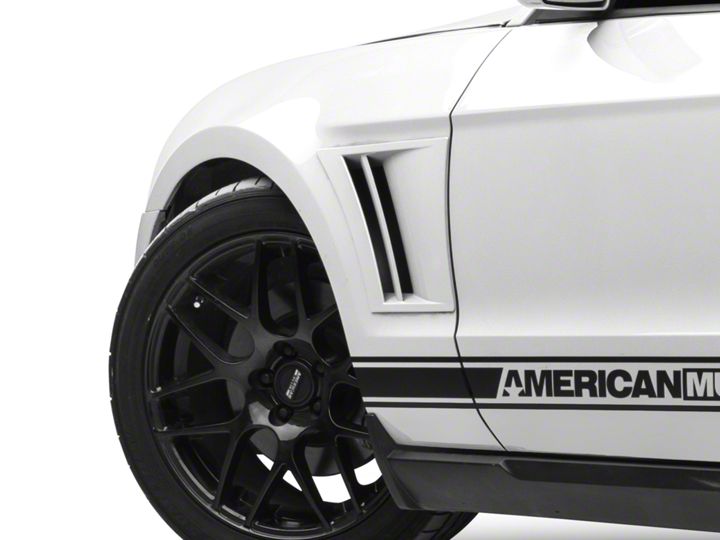

How to Install MMD Fender Vents - Unpainted (10-14 All) on your Ford Mustang

It is recommended that you have an additional person available to help during this installation, parts can be awkward to hold and support by yourself. Block wheels and set parking brake before beginning work. Tape off surrounding body panels to protect the paint, during dismantling and installation.

STEP 1: Open the hood and remove the (4) 10mm bolts along the top edge of the fender.

STEP 2: Turn the wheel to the opposite side of the car and remove the (2) phillips screws from the back of the front bumper.

STEP 3: Pull out on the bumper and remove the (2) 10mm screws from the black fender support.

STEP 4: Open the door halfway and secure it, so it does not open into the socket. Access the (1) 10 mm screw and remove it from the car.

STEP 5: Turn the wheel to the same side of the car to access the (2) plastic pins on the front of the ground effects. Pop out the center pin with a small flat head screwdriver and then remove the outer pin.

STEP 6: Carefully pull down on the ground effects. There will be (2) push pins that will release with some pressure (designated by the arrows). There are (2) 10mm screws in the bottom of the fender (designated by circles), remove both of these screws. Carefully remove the fender by pulling up and out.

STEP 7: Use painters tape to cover the exterior paint of the fender. Use a garbage bag to cover the front of the fender and secure it to the front and back of the fender to ensure metal shavings are kept off the fenders paint.

STEP 8: Apply painters tape to the face of the fender vent and wrap it over the edges to prevent any ink transfer while tracing the vent with a permanent marker.

STEP 9: Place the fender face down and lay the fender vent into the fender. Center the vent in between both fender lines, (1.5” on each side). Place the vertical side of the vent into the fender, where the fender curves under. Trace the exterior of the fender vent onto the back of the fender with a permanent marker.

STEP 10: Measure 2/5” in from the traced line (blue) and draw a new line (green). Place an X on each (blue) line and the word “CUT” on each (green) line to prevent confusion while cutting. Trace along the side of the fender that would mount to the door hinge area, this will serve as the (green) cutting line for that area. Carefully, cut along the inner line with a grinder equipped with a cutting wheel.

STEP 11: Use a metal file to remove any loose metal shavings and the lip that was created during cutting.

STEP 12: Make sure the tape surrounding the cut area is secure to keep paint from running onto the exterior of the fender, then apply paint to the exposed metal edge, this will help prevent rusting.

STEP 13: Make sure the painters tape is removed from the 3M tape areas, then apply 3M adhesion promoter to the areas.

STEP 14: Apply the pre-measured wide tape strips as shown. The left side is wide and the upper and lower tape are both thin. Apply the 4th, wide tape strip to the curved side of the scoop, under the last vent.
